PVC Wall Panel Production Machine
(300mm, 400mm, 600mm Width Options)
JM Machinery specializes in providing advanced PVC wall panel production lines used for manufacturing decorative wall panels suitable for a wide range of applications including residential buildings, commercial centers, hospitals, exhibition halls, office buildings, and modern smart urban spaces.
These machines produce high-quality PVC panels with a variety of patterns, widths (300mm, 400mm, 600mm), and thicknesses (6–10mm). The panels are known for their easy installation, durability, and aesthetic appeal.
Key Specifications
- Power Supply: 3-phase, 380V, 50Hz
- Raw Material: PVC Powder
- Panel Width Options: 300mm / 400mm / 600mm
- Panel Thickness: 6mm to 10mm
- Output Capacity: 180–250 kg/h
- Total Installed Power: 75 kW

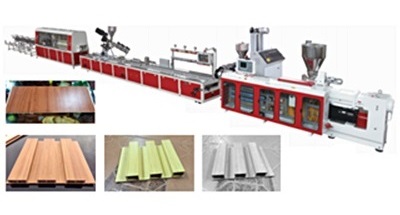

Main Components of the PVC Wall Panel Production Line
- Automatic Screw Feeder
- Twin Conical Screw Extruder (Model SJSZ-65/132)
- Vacuum Calibration Table (600mm)
- Haul-Off Machine (600mm)
- Cross Cutter (600mm)
- Automatic Infrared Stacking System
Detailed Specifications
1. Extruder System
- Output: 180–250 kg/h
- Dimensions: 4235 × 1520 × 2450 mm
- Weight: 4000 kg
- Motor Brand: Siemens Beider
- Control Components: Delixi switches, Omron temperature controller, Xiaogan pressure gauge
- Screw and Barrel Manufacturer: Zhou Shan Guang You
- Connection Method: Valve-based die head connection
- Display: Digital panel
2. Screw Details
- Diameter: φ65 (small end) / φ132 mm (large end)
- Effective Length: 1440 mm
- Material: 38CrMoAlA with nitriding treatment
- Heating Zones: 3 sections (Total heating power: 24kW)
- Cooling System: Air-cooled with 0.55kW fans (3 zones)
- Temperature Range: 50°C – 300°C
3. Transmission System
- Main Motor: 37kW AC motor with flexible shaft coupling
- Gearbox Brand: De Ling Jiangyin
- Speed Control: Variable frequency drive (VFD)
4. Vacuum Exhaust System
- Vacuum Pump Brand: JinHuan Suzhou
- Vacuum Pump Power: 2.2kW
- Pump Connection: Direct-type with spherical joint head
5. Feeding System
- Type: Automatic screw metering feeder
- Feeder Speed: 1–35 rpm
- Motor Power: 1.5kW with VFD control
6. Electrical System
- Switches: Delixi
- Thermal Protection & Contactors: Siemens
- VFDs: Dong Yuan
7. Vacuum Calibration Table
- Length: 4000 mm
- Effective Width: 900 mm
- Material: SUS 304 stainless steel
- Cooling Method: Water circulation
- Vacuum Pump Power: 5.5kW × 3 units
- Water Pump Power: 3kW
- Adjustments: Lateral, vertical, and height—motorized or manual
- Water Tank Capacity: 70L
- Cooling Fans: 0.75kW each
8. Haul-Off Unit (600mm)
- Type: Rubber belt traction
- Speed: 0.5–3m/min
- Effective Haul Length: 2000mm
- Motor Power: 2.2kW × 2 (hard tooth surface gear motors)
- Speed Control: ABB inverter
- Clamping System: Pneumatic with balancing clamps
- Height Adjustment: Pneumatic (±20mm)
9. Cutter (Cross-Cutting Type)
- Cutting Range: Up to 650mm × 50mm
- Blade: Alloy steel saw blade
- Cutting Motor: 2.2kW
- Traverse Motor: 0.55kW (adjustable speed)
- Control System: PLC with encoder (accuracy: ±0.2–0.5mm)
- Dust Removal: 1.5kW blower
- Structure: Equipped with roller support frame
10. Auto Stacker with Infrared Sensor
- Effective Table Length: 4000 mm
- Material: Stainless steel
- Discharge Type: Pneumatic with automatic infrared lift/ system
Contact Us for Quotes & Consultation
We offer high-quality, cost-effective PVC wall panel production lines in various widths (300mm, 400mm, 600mm). If youre looking to start or upgrade your PVC panel manufacturing line, contact JM Machinery for a detailed consultation and the most competitive pricing in the market.
