Plastic Straw Production Machine
JM Machinery specializes in supplying two-color curved plastic straw production machines, using PP and PE materials.
- Output: 30–35 kg/hour, equal to 600–700 straws/minute.
- Power consumption: Only about 16kW/hour, optimized for energy efficiency.
- Material: Food-grade PP and PE, used for drinking water, tea, soft drinks, milk, etc.
Basic Technical Info
- Suitable materials: PP, PE
- Output: 30–35 kg/hour (600–700 straws/min)
- Power usage: Around 16 kW
Main Components
- Φ55mm main extruder
- Φ30mm color-stripe extruder
- Molding die
- Cooling water tank
- 4-wheel puller & cutter
- Straw packing machine
- Corrugation forming machine (for bendable straws)
Detailed Specifications

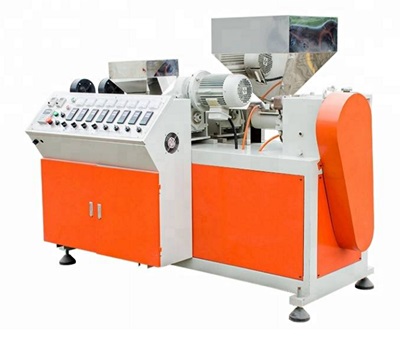

1. Main Extruder (Φ55mm)
- Screw diameter: 55mm, L/D = 28:1
- Material: 38CrMoAlA, nitrided and polished
- Gearbox: High-torque, hardened helical gears
- Control: 15kW inverter system
2. Electrical Control Cabinet
- Heating zones: 11
- Cooling zones: 3
- Cooling: Taiwanese multi-blade fans (80W x 3)
- Power supply: 3-phase, 380V, 50Hz
3. Color-Stripe Extruder (Φ30mm)
- Screw diameter: 30mm, L/D = 25:1
- Control power: 1.5kW x 2
- Inverter control
4. Molding Die
- 4 molds provided (customizable by customer)
5. Vacuum Cooling Water Tank (5m)
- Material: Wear-resistant stainless steel
- Vacuum section length: 600mm
- Vacuum pump: 2.2kW
- Water pump: 0.35kW
6. 4-Wheel Puller & Cutter
- Puller motor: 1.5kW
- Cutter motor: 0.75kW
- Inverter control (Taida)
7. Single-Straw Packing Machine
- Max speed: 300–400 pcs/min
- Packing method: 3-side seal
- Material: Paper
- Straw size: Φ5–13mm, length 130–270mm
8. Multi-Straw Packing Machine
- Speed:
+ 6–16 straws/bag: 60–100 bags/min
+ 25–50 straws/bag: 30–60 bags/min
- Seal type: 3-side seal (pillow or back-seal)
- Material: BOPP film
- Straw size: Φ3–6mm, 80–250mm length
9. Corrugation/Bendable Straw Forming Machine
- Max speed: >250 pcs/min
- Straw diameter: 4.3–7.0mm
- Straw length: 190–260mm
- Wall thickness: 0.10–0.18mm
- Short neck length: 35–48mm
- Twist segments: 11–13
- Power: 1.5kW
10. Accessories Included
- Cutter, wrenches, hex keys, screwdriver
- Thermocouple wire
- Electric current meter
- Heating ring
- Inverter manual
Features & Warranty
- Inverter: Taida (Taiwan), Motor: Jiansheng, Temperature meter: HUB, AC contactor: Shihlin
- Screw/barrel: Nitrided 38CrMoA1A steel
- Hardness: Screw ≥ 740HV Depth: Screw 0.4–0.6mm, Barrel 0.6–0.7mm
- Warranty: 1 year (non-human damage) for screw, barrel, gearbox, motor, inverter, temperature meter, AC contactor
- Delivery: Within 30 days of deposit
- Installation: On-site setup and trial by technician
Contact Us
We provide high-quality two-color PP/PE straw extrusion machines. Contact us for detailed consultation, pricing, and full production line specifications for flexible, spiral, and bendable straws used in milk tea, yogurt, beverages, and more.
