Nambu Hydraulic Clamp Cylinder

 NAMBU HYDRAULIC CLAMP CYLINDER – MULTIPLE PRESSURE OPTIONS

Nambu Hydraulic Clamp Cylinder is available in multiple models with different mounting configurations, bore sizes and stroke specifications. The range includes models for working pressures of 14.7 MPa and 16 MPa, with standard bore sizes from Ø20 to Ø330 and stroke options depending on the model. These configurations provide different cylinder formats for hydraulic clamping requirements.

1. Nambu Hydraulic Clamp Cylinder for Industrial Equipment

Nambu Hydraulic Clamp Cylinder is a product range covering multiple cylinder models and configuration options. The overall diameter range is Ø20–Ø330, while cylinder stroke is available according to the ed model.

The product range includes standard and specialized models with different mounting configurations and working pressure ratings. Depending on the model, the working pressure is specified at 14.7 MPa or 16 MPa.

The range includes:

• Standard model
• C model
• ELH model
• CP model
• ST model
• BC model
• MC model
• EXS model
• MMC model
• DC model
• SQ model
• BS model
• QS model
• SL model
• TS model

2. Nambu Hydraulic Clamp Cylinder Specifications

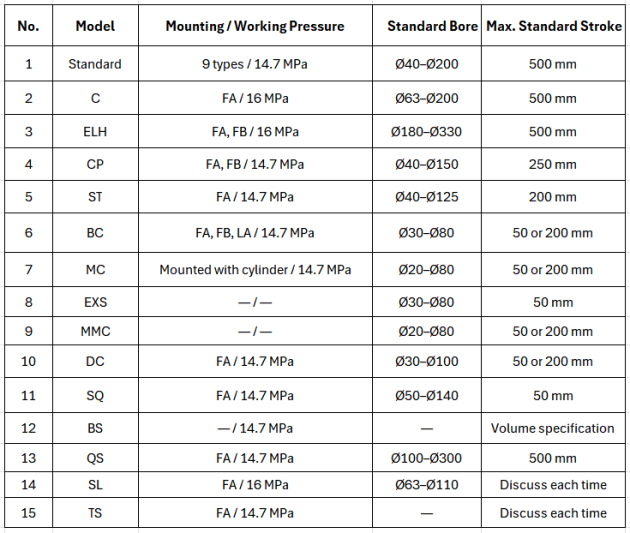

The Nambu range provides different combinations of mounting type, working pressure, bore and maximum standard stroke.

The available specifications vary by model, so the model designation is an important reference when identifying the required cylinder configuration.

3. 16 MPa Nambu Hydraulic Clamp Cylinder Models

Several Nambu models are specified for a 16 MPa working pressure, including the C, ELH and SL models.

• The C model uses FA mounting, with a standard bore range of Ø63–Ø200 and a maximum standard stroke of 500 mm.
• The ELH model uses FA or FB mounting, with a standard bore range of Ø180–Ø330 and a maximum standard stroke of 500 mm.
• The SL model uses FA mounting and has a standard bore range of Ø63–Ø110. Its stroke is specified on a case-by-case basis.

4. 14.7 MPa Nambu Hydraulic Clamp Cylinder Models

The Nambu range also includes multiple models with a 14.7 MPa working pressure, including Standard, CP, ST, BC, MC, DC, SQ, BS, QS and TS models.

• The Standard model offers 9 mounting types, with a standard bore range of Ø40–Ø200 and a maximum standard stroke of 500 mm.
• The CP model has a standard bore range of Ø40–Ø150 and a maximum standard stroke of 250 mm.
• The BC model supports FA, FB and LA mounting, with bore sizes from Ø30–Ø80 and standard stroke options of 50 or 200 mm.

Other models provide different bore and stroke combinations according to their respective configurations.

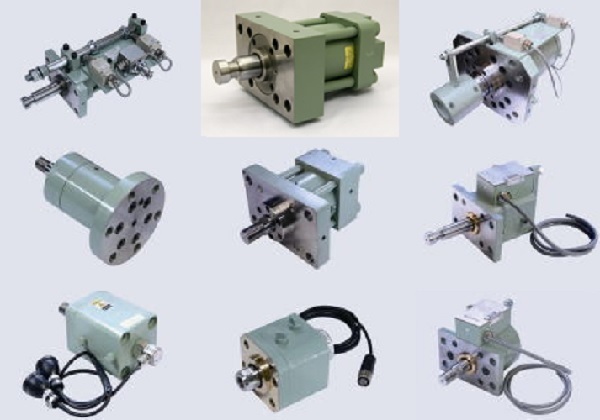

Nambu hydraulic clamp cylinder

5. Bore and Stroke Options

Bore and stroke are two important specifications when identifying a Nambu Hydraulic Clamp Cylinder.

Across the listed models, standard bore sizes range from Ø20 to Ø330. Maximum standard stroke varies by model, from 50 mm to 500 mm, while some models have stroke specifications that are discussed individually.

Examples include:

• MC: Ø20–Ø80 50 or 200 mm stroke
• BC: Ø30–Ø80 50 or 200 mm stroke
• ST: Ø40–Ø125 up to 200 mm stroke
• CP: Ø40–Ø150 up to 250 mm stroke
• Standard: Ø40–Ø200 up to 500 mm stroke
• ELH: Ø180–Ø330 up to 500 mm stroke

This range allows the cylinder configuration to be identified based on the required bore, stroke and mounting specifications.

6. Nambu Hydraulic Clamp Cylinder Supply

Thien An Viet Nam Trading Company Limited supplies hydraulic and pneumatic equipment, including Nambu hydraulic clamp cylinders. The company serves the nationwide market and lists Nambu hydraulic clamp cylinders with multiple model options.

Customers can provide the required bore, stroke, working pressure and mounting configuration when discussing a Nambu hydraulic clamp cylinder requirement. The available model range can then be referenced according to the required specifications.

Contact Thien An Viet Nam Trading Company Limited for Nambu Hydraulic Clamp Cylinder requirements and model specifications.
