Horiuchi Hydraulic Cylinder

HORIUCHI HYDRAULIC CYLINDER – F AND T SERIES FOR INDUSTRIAL EQUIPMENT

Horiuchi Hydraulic Cylinder includes F Series and T Series tie-rod cylinder configurations for hydraulic equipment. The F Series is specified at 7–14 MPa, with standard cylinder bore sizes from 32 to 180 mm. The T Series features single-rod standard cylinders with bore sizes from 40 to 160 mm, with specific mounting exceptions.

1. Horiuchi Hydraulic Cylinder F Series

• The F Series is a tie-rod type cylinder with a pressure range of 7–14 MPa. The series includes standard cylinder configurations with bore sizes from 32 to 180 mm.
• The F Series is presented as a standard cylinder solution with a defined bore range, making the cylinder size an important specification when identifying the required configuration.
• The standard configurations shown for the F Series are available for delivery within 4 working days.

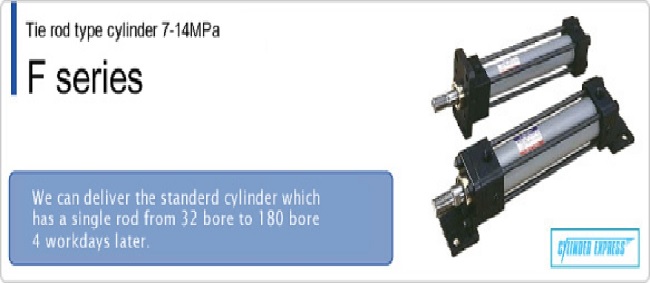

Horiuchi F Series hydraulic cylinder 7-14 MPa

2. Horiuchi Hydraulic Cylinder T Series

• The T Series is a tie-rod cylinder series featuring a single-rod standard type.
• The standard T Series configuration covers cylinder bore sizes from Ø40 to Ø160. The stated range applies except for mounting configurations LA, CA and CB.
• Standard T Series configurations shown are available for delivery within 4 working days.

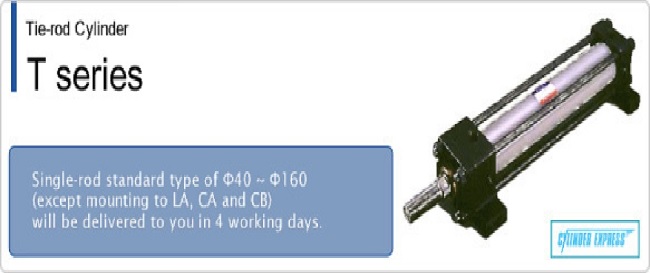

Horiuchi T Series tie-rod hydraulic cylinder

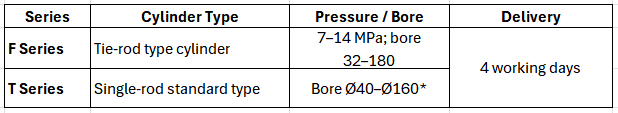

3. F Series and T Series Specifications

The two Horiuchi cylinder series provide different configuration references:

* The stated T Series bore range excludes mounting configurations LA, CA and CB.

The series and cylinder bore are key references when identifying a suitable Horiuchi hydraulic cylinder configuration.

4. Horiuchi Tie-Rod Cylinder Configurations

Tie-rod construction is used across both the F Series and T Series presented for Horiuchi hydraulic cylinders.

• For the F Series, the available standard cylinder bore range is 32 to 180 mm, with the series specified for 7–14 MPa.
• For the T Series, the single-rod standard type covers Ø40 to Ø160, subject to the stated mounting exceptions.

These specifications provide a practical basis for distinguishing the two product series during model and configuration discussions.

5. Delivery Availability for Standard Configurations

The standard configurations shown for both Horiuchi F Series and T Series are stated with a 4-working-day delivery timeframe.

• For the F Series, this applies to the standard cylinder configurations with bore sizes from 32 to 180 mm.
• For the T Series, the stated delivery applies to the single-rod standard type with Ø40 to Ø160 bore, excluding the specified mounting configurations.

6. Horiuchi Hydraulic Cylinder Supply

Thien An Viet Nam Trading Company Limited supplies hydraulic and pneumatic equipment, including Horiuchi hydraulic cylinders.

The Horiuchi range presented includes the F Series and T Series, giving customers identifiable options based on cylinder series, bore size and configuration requirements.

For requirements involving Horiuchi hydraulic cylinders, customers can provide the required series and cylinder specifications for product identification and supply discussion.
