Taiyo 10 MPa Hydraulic Cylinder

TAIYO 10 MPA HYDRAULIC CYLINDER – FLEXIBLE CONFIGURATIONS

Taiyo 10 MPa Hydraulic Cylinder is a compact hydraulic cylinder range for industrial hydraulic equipment and machinery. The range includes standard and sensor-equipped configurations, with different mounting, bore, stroke, port and other configuration options. The 100S-1 series is designed for hydraulic applications with a nominal pressure of 10 MPa.

1. Taiyo 10 MPa Hydraulic Cylinder for Industrial Equipment

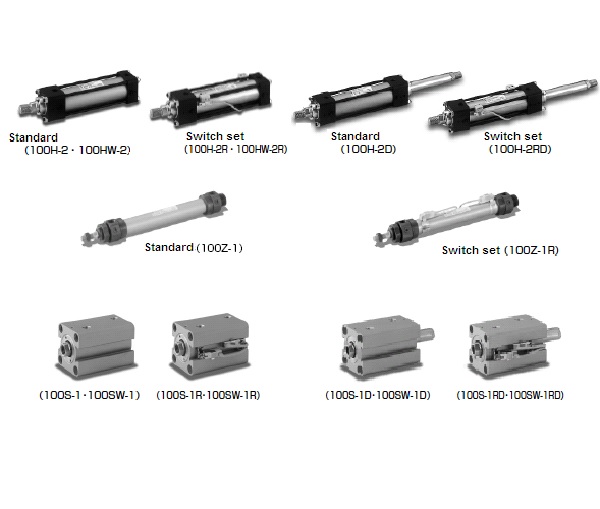

The Taiyo 10 MPa Hydraulic Cylinder is a hydraulic cylinder series designed for industrial equipment requiring a nominal pressure of 10 MPa. The range includes the 100S-1 standard cylinder and 100S-1R switch-equipped configuration.

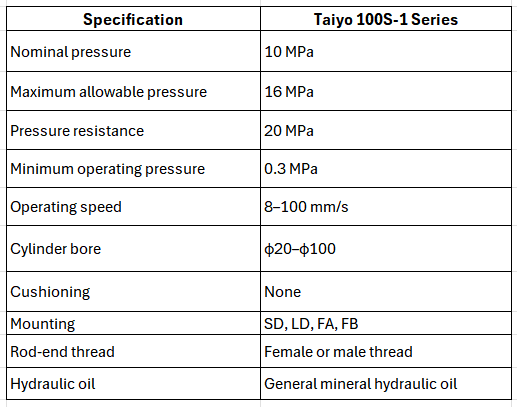

The 100S-1 series is a thin hydraulic cylinder available in different bore and stroke configurations. Product specifications include bore sizes from φ20 to φ100, a maximum allowable pressure of 16 MPa, and a pressure resistance of 20 MPa. The operating speed range is 8–100 mm/s, with no cushioning mechanism in the standard configuration.

The range is suitable for buyers who need to match a hydraulic cylinder to available installation space and specific equipment requirements.

Taiyo 10 MPa hydraulic cylinder

2. Technical Specifications and Configuration Options

The Taiyo 10 MPa hydraulic cylinder range provides multiple specifications for different equipment configurations.

The 100S-1 is the standard configuration, while 100S-1R is the switch-equipped version. The series also includes configurations such as 100S-1D and 100S-1RD for double-rod applications.

Different mounting and configuration options allow buyers to match the cylinder with the mechanical layout and installation requirements of the hydraulic system.

3. Understanding the Taiyo Hydraulic Cylinder Model Code

The Taiyo model code uses a structured sequence to identify the main cylinder and configuration specifications.

Examples:

Standard cylinder: 100S-1 – 6 – SD – 40 – N – 50 – T – G

Cylinder with sensor: 100S-1R – 6 – SD – 40 – N – 50 – T – G – AH – 2 – L – V

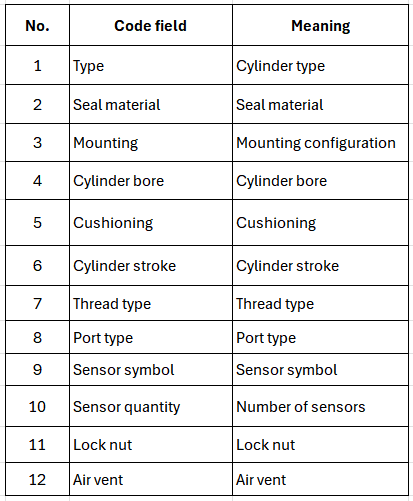

The 12 code positions represent:

This coding structure helps technical and procurement teams identify the required cylinder configuration from the model code. For standard cylinders, the code covers the main mechanical specifications sensor-equipped configurations additionally identify sensor-related and other configuration fields.

4. Standard and Sensor-Equipped Configurations

The 100S-1 configuration is used as the standard cylinder type, while 100S-1R represents the sensor-equipped version shown in the product configuration guide.

For example:

• 100S-1 → standard cylinder
• 100S-1R → cylinder with sensor
• 6 → seal material code
• SD → mounting code
• 40 → cylinder bore code
• N → cushioning code
• 50 → cylinder stroke
• T → thread type
• G → port type

For the sensor-equipped configuration, the code continues with AH for the sensor symbol, 2 for sensor quantity, followed by L for lock nut and V for air vent.

The model-code structure is useful when preparing a procurement request, specifying a replacement cylinder or matching a cylinder configuration with existing hydraulic equipment.

5. Applications and Buyer Requirements

Taiyo 10 MPa Hydraulic Cylinder is suitable for industrial machinery and hydraulic equipment requiring a compact cylinder configuration with a nominal pressure of 10 MPa.

The series can be considered for applications where buyers need to match:

• Cylinder bore
• Cylinder stroke
• Mounting configuration
• Thread type
• Port type
• Sensor configuration
• Lock nut and air vent requirements

The 100S-1 series is available in multiple bore and mounting configurations, while the 100S-1R version provides a sensor-equipped option.

For procurement, providing the required model, bore, stroke and mounting configuration helps identify the appropriate cylinder specification.

6. Thien An Viet Nam – Supplier of Taiyo Hydraulic Equipment

Thien An Viet Nam Trading Company Limited supplies hydraulic and pneumatic equipment, including Taiyo hydraulic cylinders. For the Taiyo 10 MPa Hydraulic Cylinder, the product range provides standard and sensor-equipped configurations for different equipment requirements.

The product is supplied for the nationwide market. The listed commercial information includes a minimum order quantity of 1 unit and a 12-month warranty.

For purchasing and technical consultation, buyers can provide the required Taiyo series, cylinder bore, stroke, mounting and configuration code when contacting Thien An Viet Nam.

Contact the company to discuss the required Taiyo 10 MPa Hydraulic Cylinder configuration and purchasing requirements.
