Taiyo 7 MPa Hydraulic Cylinder

TAIYO 7 MPA HYDRAULIC CYLINDER – 140H-8 MODEL CONFIGURATIONS

Taiyo 7 MPa Hydraulic Cylinder is available in the 140H-8 series with standard and sensor-equipped configurations. The model code covers key configuration elements such as seal material, mounting, cylinder bore, rod type, cushioning, stroke, port type and port position. Sensor-equipped configurations include additional sensor-related specifications.

1. Taiyo 7 MPa Hydraulic Cylinder for Hydraulic Equipment

Taiyo 7 MPa Hydraulic Cylinder is identified through the 140H-8 model series. The product configuration is represented by a structured model code, allowing each cylinder specification to be identified through individual code positions.

Two configurations are shown:

• Standard: 140H-8 2 LA 80 B B 200 – G A B T – L – J
• Sensor-equipped: 140H-8 2 LA 80 B B 200 – G A B AH 2 T – L – J

The sensor-equipped configuration adds sensor-related code elements while retaining the main product configuration.

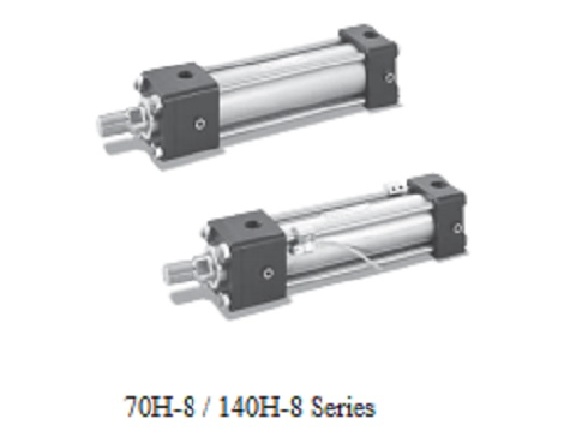

Taiyo 7 MPa hydraulic cylinder

2. Taiyo 140H-8 Model Code Structure

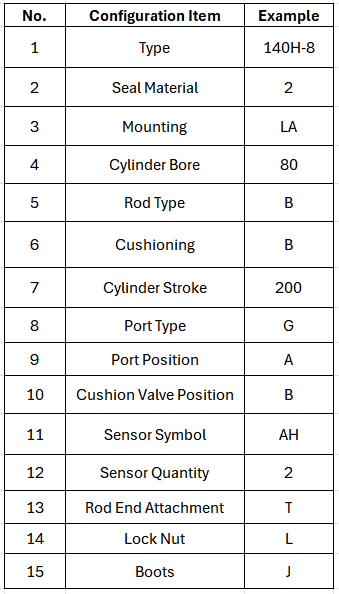

The Taiyo 140H-8 model code contains 15 configuration positions. Each position corresponds to a specific product parameter.

This structure provides a detailed identification reference for the 140H-8 configuration. The individual code positions should be read together as a complete model specification.

3. Standard and Sensor-Equipped Configurations

The standard Taiyo 140H-8 configuration is represented by:

140H-8 2 LA 80 B B 200 – G A B T – L – J

The sensor-equipped configuration is represented by:

140H-8 2 LA 80 B B 200 – G A B AH 2 T – L – J

The main difference shown in the two model codes is the additional sensor information in the sensor-equipped version. The code includes AH for the sensor symbol and 2 for the sensor quantity.

This model-code structure enables the required configuration to be communicated using a complete product code rather than the series designation alone.

4. Key Configuration Parameters

The Taiyo 140H-8 model code covers multiple parameters relevant to product identification, including:

• Type
• Seal material
• Mounting
• Cylinder bore
• Rod type
• Cushioning
• Cylinder stroke
• Port type
• Port position
• Cushion valve position
• Sensor symbol
• Sensor quantity
• Rod end attachment
• Lock nut
• Boots

For the standard configuration, the model code contains the main cylinder specifications without the sensor symbol and sensor quantity shown in the sensor-equipped version.

For the sensor-equipped configuration, AH and 2 identify the sensor-related positions in the model code.

5. Taiyo 140H-8 Configuration Identification

The complete model code is useful when specifying a Taiyo 140H-8 hydraulic cylinder because it combines multiple configuration parameters into one product designation.

For example, the standard configuration is identified as:

140H-8 2 LA 80 B B 200 – G A B T – L – J

The sensor-equipped configuration is identified as:

140H-8 2 LA 80 B B 200 – G A B AH 2 T – L – J

Providing the complete model code helps clarify the required configuration when discussing product requirements and hydraulic equipment specifications.

6. Taiyo Hydraulic Cylinder Supply

Thien An Viet Nam Trading Company Limited supplies hydraulic and pneumatic equipment, including Taiyo hydraulic cylinder products.

For requirements involving the Taiyo 7 MPa Hydraulic Cylinder, the 140H-8 model code provides a structured reference for identifying the cylinder configuration. Customers can provide the complete model code when discussing product requirements to support accurate model identification.

Contact Thien An Viet Nam Trading Company Limited to discuss Taiyo 7 MPa Hydraulic Cylinder requirements and the 140H-8 configuration.
