Taiyo 21 MPa Hydraulic Cylinder

TAIYO 21 MPA HYDRAULIC CYLINDER – FLEXIBLE CONFIGURATIONS FOR INDUSTRIAL EQUIPMENT

Taiyo 21 MPa Hydraulic Cylinder is a hydraulic cylinder range for equipment requiring a maximum working pressure of 21 MPa. The range includes round and square configurations, with bore sizes from φ40 to φ250 and stroke lengths according to the ed configuration. Multiple Taiyo types are available with different mounting arrangements, bore sizes and standard stroke specifications.

1. Taiyo 21 MPa Hydraulic Cylinder for Hydraulic Equipment

The Taiyo 21 MPa Hydraulic Cylinder is designed for hydraulic equipment operating at a maximum working pressure of 21 MPa. The product range includes different cylinder structures and configurations to accommodate varying equipment requirements.

Key product specifications include:

• Maximum working pressure: 21 MPa
• Cylinder structure: Round and square
• Bore diameter range: φ40–φ250
• Stroke: Available according to configuration
• Brand: Taiyo
• Origin: Japan
• Minimum order quantity: 1 unit
• Warranty: 12 months

The range includes several Taiyo cylinder types, such as 210S-1, 210S-1R, 210N-1, 210C-1, 210C-1R, 210C-1D, 210H-3.

Taiyo 21 MPa hydraulic cylinder

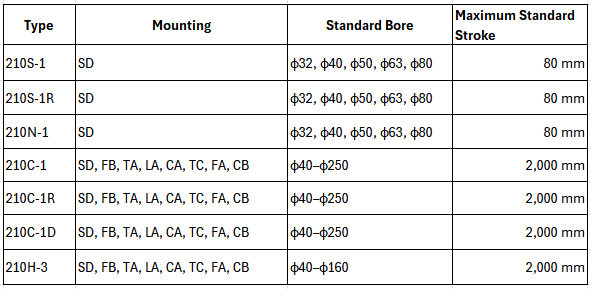

2. Technical Specifications and Taiyo Cylinder Types

The available specifications vary according to each cylinder type, mounting arrangement and bore size.

The 210S-1 series has a compact bore range from φ32 to φ80 with an 80 mm maximum standard stroke. The 210C-1 series covers a broader bore range from φ40 to φ250 and supports multiple mounting arrangements, with a maximum standard stroke of 2,000 mm.

3. How to Read the Taiyo Hydraulic Cylinder Model Code

For procurement and technical identification, the product configuration can be read through the model-code structure shown in the product ion guide.

Examples:

• Standard cylinder: 210S-1 – 6 – SD – 40 – N – 30 – T
• Cylinder with sensor: 210S-1R – 6 – SD – 40 – N – 30 – T – AF – 2

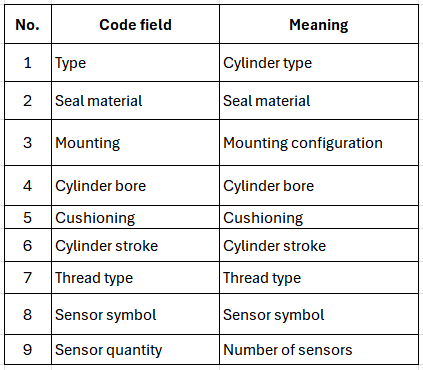

The nine positions represent:

This coding structure allows the required cylinder configuration to be identified according to type, seal material, mounting, bore, cushioning, stroke, thread type and sensor configuration.

For example, the code 210S-1 identifies the cylinder type, while subsequent code positions define the corresponding technical configuration. This information is useful when preparing a procurement request or matching a replacement cylinder with existing hydraulic equipment.

4. Applications and Suitable Buyer Requirements

Taiyo 21 MPa Hydraulic Cylinder is suitable for industrial buyers looking for hydraulic cylinders with a maximum working pressure of 21 MPa.

The different bore sizes, mounting configurations and stroke specifications provide options for hydraulic equipment with different installation and operating requirements. Buyers can identify the appropriate cylinder type by comparing the required bore, stroke, mounting configuration and other model-code specifications.

The product range is relevant to:

• Industrial equipment users
• Hydraulic equipment procurement teams
• Machinery and automation businesses
• Industrial component distributors
• Businesses requiring replacement hydraulic cylinders

When requesting a specific configuration, buyers should provide the required cylinder type, bore, stroke, mounting and other applicable model-code specifications to facilitate technical matching.

5. Thien An Viet Nam – Taiyo Hydraulic Cylinder Supplier

Thien An Viet Nam Trading Company Limited operates as a trading company supplying hydraulic and pneumatic equipment. The company lists Taiyo hydraulic equipment among its product portfolio and serves the nationwide market.

For the Taiyo 21 MPa Hydraulic Cylinder, the listed minimum order quantity is 1 unit, with a 12-month warranty. The product is supplied in multiple configurations, including the 210S-1, 210S-1R, 210N-1, 210C-1, 210C-1R, 210C-1D and 210H-3 types.

Contact the company with the required type, bore, stroke, mounting and configuration details for product consultation and purchasing arrangements.
