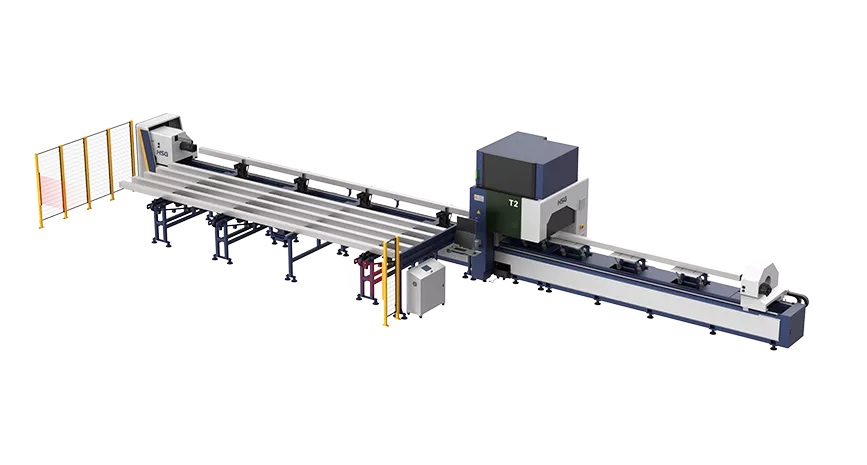

HSG T2 3-CHUCK TUBE LASER CUTTING MACHINE 3000W–6000W: PRECISE TUBE CUTTING WITH MINIMAL REMNANT MATERIAL
Laser tube cutting requires more than just laser power. Cutting quality depends greatly on how the tube is clamped, supported, and moved during the cutting process. With a 3-chuck tube laser cutting machine, all three chucks work together to hold the tube more securely and utilize nearly its entire length. The T2 series from HSG Laser, supplied by Hoang Long Company, offers laser power ranging from 3000W to 6000W. The machine can process round tubes, square tubes, and structural steel profiles within the common size ranges used in mechanical workshops.
What Is the T2 Tube Laser Cutting Machine Series?
The T2 is HSG Lasers fiber laser cutting machine specifically designed for tube processing, featuring a three-chuck configuration: two front chucks and one rear chuck. This arrangement enables the machine to handle heavier tubes and cut closer to the tube end, reducing remnant material. Hoang Long Company supplies this series.
Key Specifications
► Laser power: 3000W–6000W
► X/Y-axis positioning accuracy: ±0.03 mm/m
► Round tubes: Φ20–Φ240 mm
► Square tubes: □20 × 20–□240 × 240 mm
► Tube load capacity: 300 kg
► Operating system: Intelligent BUS
Key Technical Features

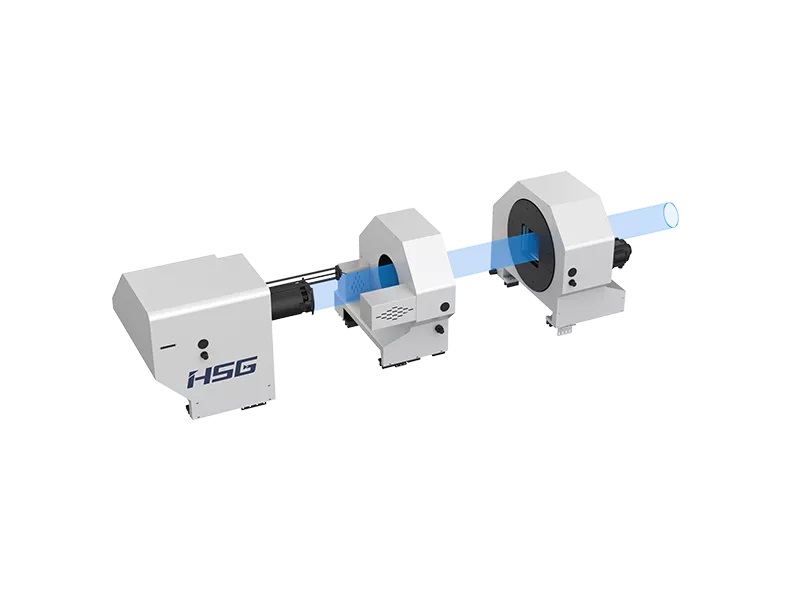

1. Three Fully Movable Chucks
All three chucks can move, allowing the machine to cut closer to the tube end and reduce material waste. Chuck C3 features a hollow design to discharge fully cut tubes. The standard 240 mm chuck provides a more secure grip on square tubes.
2. Independent Servo Tube Supports
Both the loading and unloading positions are equipped with independent, highly responsive servo tube supports. These supports keep the tubes stable during rotation and cutting, helping improve cutting accuracy.

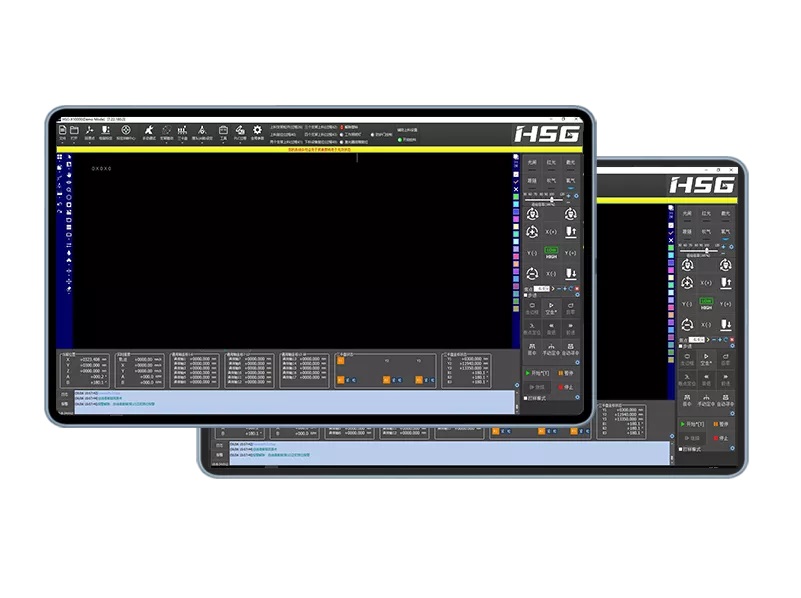

3. Intelligent BUS Operating System
The machine features various tube-cutting functions to meet different processing requirements. Specialized tube nesting software helps arrange parts along the tube, manage production progress, and calculate quotations.
4. Automatic Loading (Optional)
The multifunctional loading rack is an optional accessory that automatically feeds round tubes, rectangular tubes, structural steel profiles, and various other tube types. It significantly increases loading speed, making it suitable for high-volume cutting workshops.
Who Is the T2 Series Suitable For?
– Workshops processing round tubes, square tubes, rectangular tubes, and structural steel profiles
– Businesses looking to maximize material utilization and reduce remnant material
– Companies handling high-volume tube cutting and planning to add an automatic loading rack
– Workshops looking to manage production progress and generate quotations directly through tube nesting software
For smaller tube workpieces, HSG offers the R1 series, which handles tubes with diameters of Φ8–Φ120 mm. For heavy-duty cutting of large tubes, the TLS series can process tubes up to Φ715 mm. For applications requiring both sheet metal and tube cutting, the CB series is also available. You can discuss your requirements with the supplier to determine the most suitable series.
Frequently Asked Questions
What Tube Sizes Can the T2 Cut?
It can process round tubes with diameters of Φ20–Φ240 mm, square tubes ranging from 20 × 20 mm to 240 × 240 mm, and tubes weighing up to 300 kg.
Does It Support Automatic Loading?
Yes, automatic loading is available as an option. You should specify this requirement when making an inquiry to receive advice on the appropriate configuration.
Should You Choose 3000W or 6000W Laser Power?
The required power depends on the material and the wall thickness of the tubes being cut. You should provide these details to receive recommendations on a suitable configuration.
Contact Us for Consultation
For consultation on configurations and quotations for HSG T2 3-chuck tube laser cutting machines, please contact Hoang Long Company. Provide details about the tube type, dimensions, wall thickness, and expected production volume so that a suitable configuration can be recommended.
