HSG GFA LARGE-FORMAT LASER CUTTING MACHINE 12000W–60000W FOR LARGE-SIZE SHEET METAL PROCESSING
When working with large or relatively thick metal sheets, making multiple cuts on a smaller-format machine can be time-consuming and make it difficult to maintain consistency between parts. A large-format laser cutting machine is a solution for these requirements. The GFA series from HSG Laser, supplied by Hoang Long Company, offers laser power ranging from 12000W to 60000W. With a working area of up to 26000 × 3500 mm, a BUS control system, and a high-power cutting head designed for thick sheets, the machine is suited to large-scale sheet metal processing.
What Is the GFA Laser Cutting Machine Series?
The GFA is HSG Lasers high-power, large-format fiber laser cutting machine series. It uses a fiber laser source and is designed primarily for large-scale sheet metal processing. According to the manufacturer, the machine body features a segmented assembly design, with dimensions that can be customized to meet individual processing requirements. Hoang Long Company supplies this series.
Key Specifications
► Laser power: 12000W–60000W
► Control system: BUS EtherCAT
► X/Y-axis positioning accuracy: ±0.05 mm/m
► High-power BUS cutting head: 10kW–40kW range
► Bevel cutting: 0–45° with the P-series cutting head
Two Working Area Configurations:
- G13035FA: 12000W–60000W, working area of 13000 × 3500 mm
- G26035FA: 12000W–60000W, working area of 26000 × 3500 mm
Key Technical Features
1. BUS EtherCAT Control System
Data transmission via the EtherCAT bus is fast and stable. The system monitors the status of core components in real time, provides millisecond-level response, and generates processing reports with a single click. According to the manufacturer, the operating interface is straightforward, allowing new operators to become familiar with the system quickly.

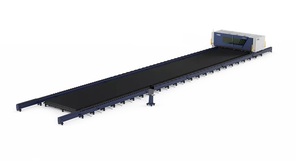

2. Segmented Machine Body
The segmented design allows the machine length to be customized according to processing requirements, meeting the needs of large-scale sheet metal cutting.
3. Production-Oriented Process Database
When cutting sheets of different materials and thicknesses, operators can retrieve processing parameters from the built-in database. The database includes processes such as nano-joint cutting, high-speed thin-sheet cutting, and edge finding. This enables faster changeovers between different sheet types.

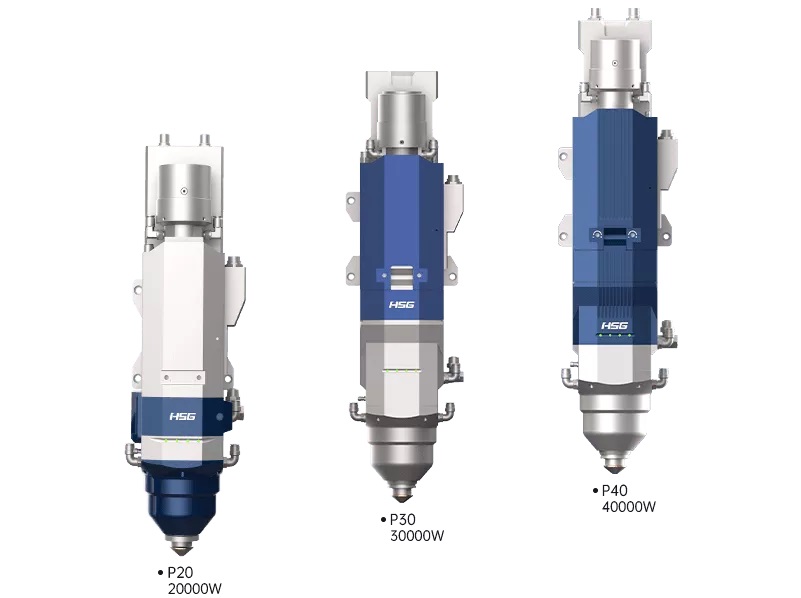

4. High-Power BUS Cutting Head
HSG has developed various high-power BUS cutting heads in the 10kW–40kW range for stable, high-volume cutting of thick sheets. The cutting head features:
✓ Optical coatings to help reduce lens contamination
✓ Real-time focus control during cutting
✓ BUS height adjustment system
✓ Beam shaping technology
5. Bevel Cutting
The P-series cutting head performs bevel cutting at angles from 0° to 45°, including V-, X-, and Y-shaped bevels. This configuration is intended for parts that require edge beveling before welding. Bevel cutting requirements should be discussed and confirmed when placing an order.
Who Is the GFA Series Suitable For?
– Sheet metal cutting workshops handling large-format metal sheets and looking to reduce the need for multiple cutting passes or joins
– Businesses that regularly process large quantities of thick sheet metal
– Companies that need to bevel part edges directly on the machine
– Factories requiring a machine body with a customizable length to suit their workshop layout
For standard-format processing requirements, HSG also offers the GH series (3000W–60000W) and GX series (3000W–30000W). You can discuss your requirements with the supplier to determine the most suitable series.
Frequently Asked Questions
How Does the GFA Differ from Conventional Sheet Metal Laser Cutting Machines?
The GFA is designed for large-format processing, with lengths of 13000 mm and 26000 mm and laser power starting at 12000W. It is intended for thick or large-sized sheets. Standard-format machines are more suitable for smaller workpieces and a wider variety of production volumes.
Can the Machine Length Be Customized to Fit the Workshop?
According to the manufacturer, the segmented machine body allows its dimensions to be customized. You should provide your workshop layout and typical workpiece dimensions when making an inquiry to receive specific recommendations.
Contact Us for Consultation
For consultation on configurations and quotations for HSG GFA large-format laser cutting machines, please contact Hoang Long Company. Provide details about the materials, thicknesses, and workpiece dimensions you typically process so that the appropriate model can be recommended.
