HSG TLS HEAVY-DUTY TUBE LASER CUTTING MACHINE 12000W–20000W: CUTTING LARGE, LONG TUBES AND BEVELING IN A SINGLE OPERATION
Large steel tubes are both heavy and long. Even a slight clamping misalignment can cause cumulative errors along the tubes length. Cutting with saws, drilling, and manually grinding bevels also requires multiple labor-intensive steps. A heavy-duty tube laser cutting machine addresses these challenges by combining cutting, hole piercing, and beveling in a single machine. The TLS series from HSG Laser, supplied by Hoang Long Company, is designed for large tube workpieces, with laser power ranging from 12000W to 20000W and a 4+1 chuck configuration.
What Is the TLS Tube Laser Cutting Machine Series?

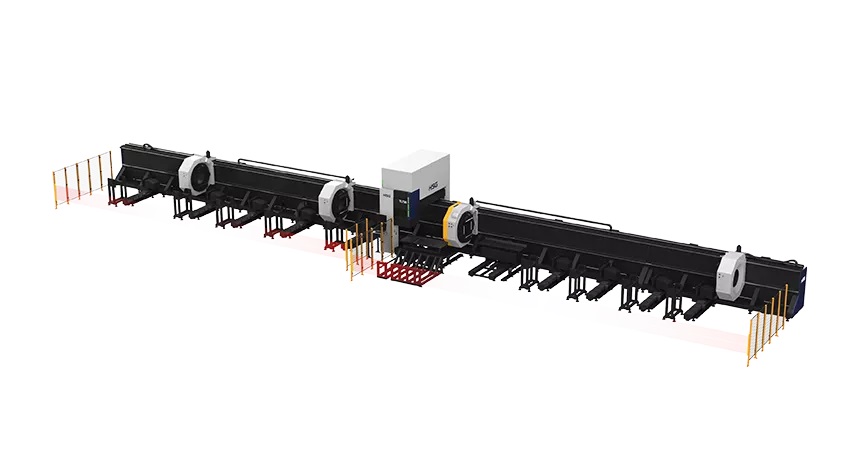

The TLS is HSG Lasers heavy-duty metal tube laser cutting machine series, equipped with a high-power fiber laser source. It can process round tubes with diameters of up to 715 mm, square tubes up to 500 × 500 mm, tube lengths of up to 16 m, and individual tube weights of up to 4000 kg. Hoang Long Company supplies this series.
Key Specifications
► Model: TL730S
► Laser power: 12000W–20000W
► X/Y-axis positioning accuracy: ±0.1 mm/m
► Round tubes: Φ120–Φ715 mm
► Square tubes: □120 × 120–□500 × 500 mm
► Tube length: 16 m
► Single-tube load capacity: 4000 kg
Key Technical Features
1. 4+1 Chuck Configuration

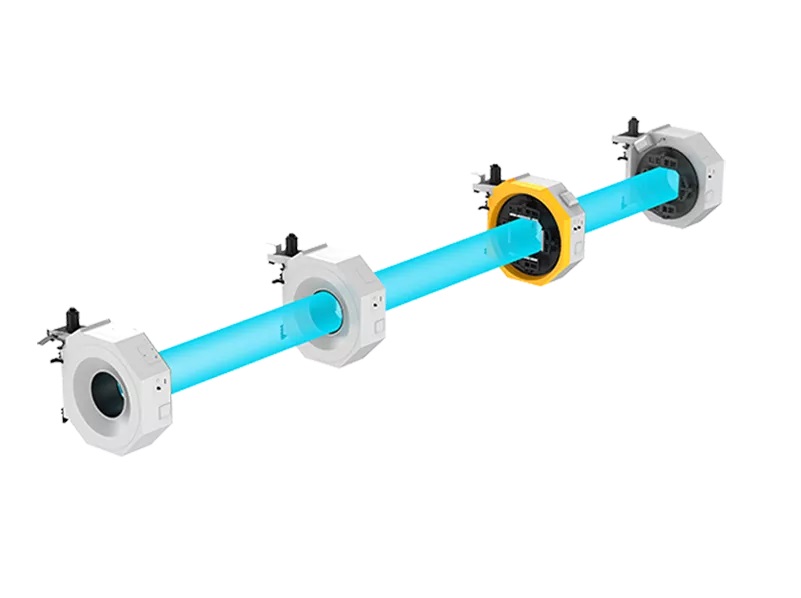

The TLS features four clamping points at the loading end and two clamping points near the cutting area. Chucks C3 and C4 are integrated into one unit to provide dual support. Four-point clamping at the loading end increases load-bearing capacity, while two-point clamping near the cutting area helps maintain accuracy as heavy tubes rotate.
2. Intelligent Digital Chuck
The chuck and control system exchange data to form a closed-loop control system. The machine detects the clamping status, measures tube dimensions, and automatically adjusts the clamping force accordingly. This keeps the tube securely held without deformation caused by excessive clamping force.
3. Heavy-Duty Dual-Rail Structure

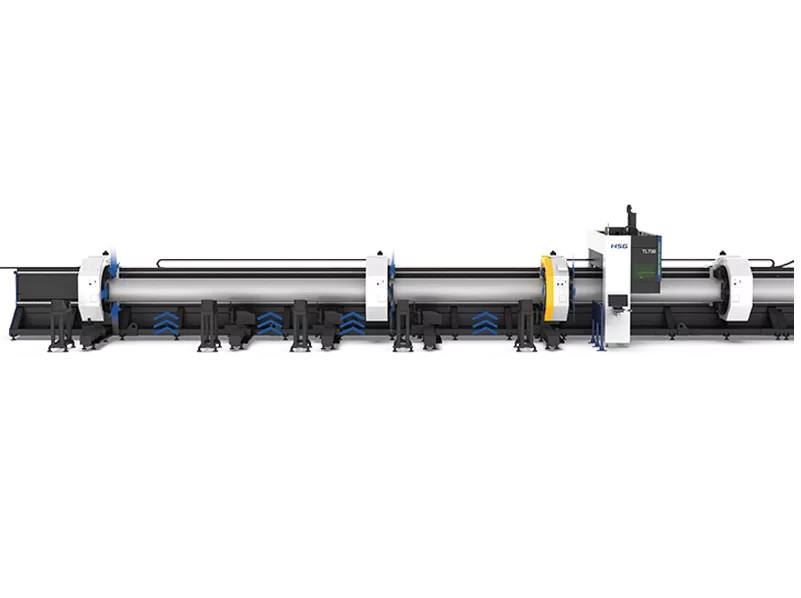

The machine features a heavy-duty dual-rail structure and a machine bed designed for high-power applications. It operates stably even when processing heavy, long tubes.
4. Bevel Cutting and Forming in a Single Operation
The machine offers an optional bevel cutting head that enables beveling during the same cutting operation. Tubes do not need to be transferred to a separate beveling machine, significantly reducing the number of processing steps.
Who Is the TLS Series Suitable For?
– Fabrication workshops processing large-diameter, long, and heavy steel tubes
– Businesses that need to bevel tube edges before welding
– Companies looking to combine cutting, hole piercing, and beveling in one machine to reduce processing steps
– Factories requiring high-power tube cutting machines with secure clamping and high load-bearing capacity
For smaller tube workpieces, HSG offers other tube cutting series, such as the R1, which handles tubes with diameters of Φ8–Φ120 mm. For applications requiring both sheet metal and tube cutting, the CB series is also available. You can discuss your requirements with the supplier to determine the most suitable series.
Frequently Asked Questions
What Is the Maximum Tube Size the TLS Can Cut?
It can process round tubes with diameters of up to Φ715 mm, square tubes up to □500 × 500 mm, tube lengths of up to 16 m, and individual tube weights of up to 4000 kg.
Can It Perform Bevel Cutting?
Yes, with the optional bevel cutting head. You should specify your edge beveling requirements when making an inquiry so that the appropriate configuration can be recommended.
Should You Choose 12000W or 20000W Laser Power?
The required power depends on the material and the wall thickness of the tubes being processed. You should provide these details to receive recommendations on a suitable configuration.
Contact Us for Consultation
For consultation on configurations and quotations for HSG TLS heavy-duty tube laser cutting machines, please contact Hoang Long Company. Provide details about the tube type, dimensions, wall thickness, and beveling requirements so that a suitable configuration can be recommended.
