HIGH-POWER HSG GH FIBER LASER CUTTING MACHINE 3000W–60000W FOR SHEET METAL PROCESSING
If your workshop cuts large volumes of sheet metal in a wide range of thicknesses, a high-power fiber laser cutting machine is a piece of equipment worth carefully considering when making an investment. The GH series from HSG Laser, supplied by Hoang Long Company, is designed for these requirements. The machine covers a power range of 3000W to 60000W, uses a BUS control system, and features a reinforced, high-rigidity frame structure for stable operation at high speeds.
What Is the GH Laser Cutting Machine Series?
The GH is HSG Lasers high-performance sheet metal laser cutting machine series. According to the manufacturer, HSG has over 20 years of experience in fiber laser cutting machine manufacturing. The machines use fiber laser sources to cut various types of sheet metal and are available in different working table sizes to suit workpiece dimensions. Hoang Long Company supplies this series to customers with relevant requirements.
Key Specifications
- Laser power: 3000W–60000W
- Working area: from 3100 × 1550 mm to 6200 × 2550 mm
- X/Y-axis positioning accuracy: ±0.03 mm/m
- Maximum speed: 200 m/min
- Maximum acceleration: 4.0G
- Control system: BUS
Some Specific Configurations:

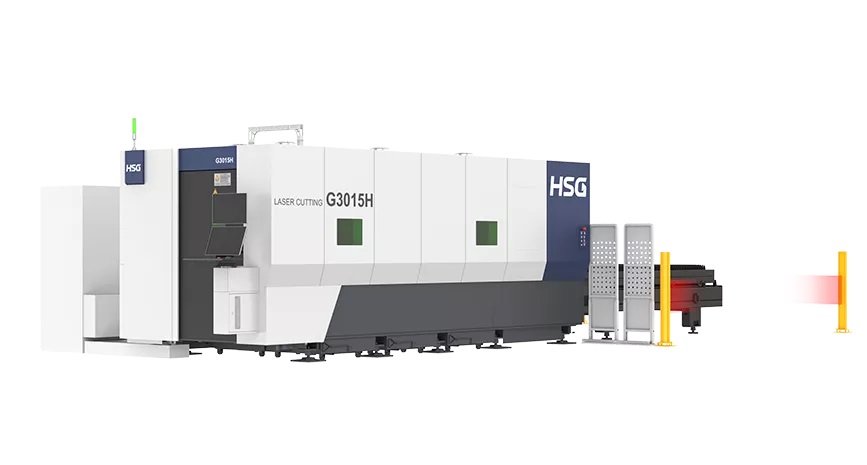

- G3015H: 3000W–30000W, working area of 3100 × 1550 mm
- G4020H: 3000W–60000W, working area of 4100 × 2050 mm
The machine is also available in higher-power configurations with working areas of up to 6200 × 2550 mm. You should discuss your requirements with the supplier to receive advice on the appropriate model.
Key Technical Features of the GH High-Performance Sheet Metal Laser Cutting Machine

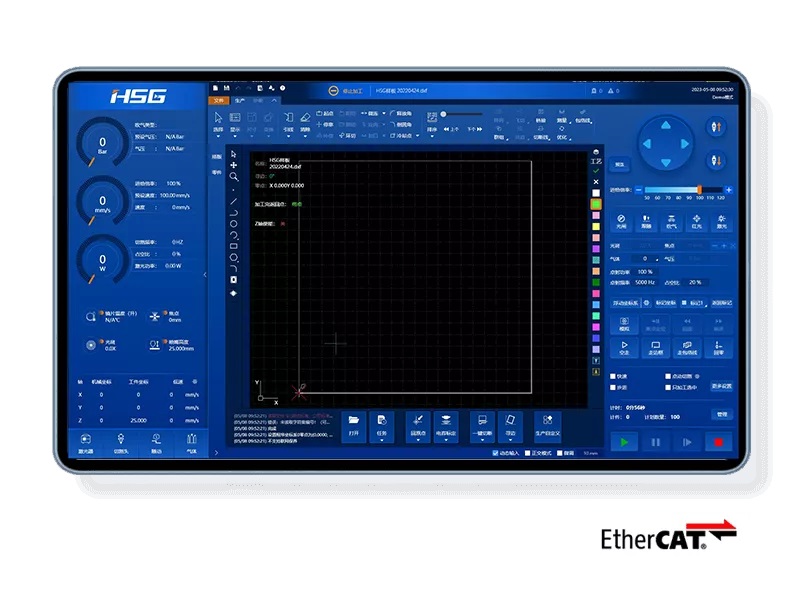

1. BUS Control System
This upgraded version features an intelligent toolpath optimization algorithm, intelligent oscillation control, dual-drive torque protection, and DA pneumatic calibration. The interface is relatively straightforward, helping new operators become familiar with the machine quickly.
2. Fifth-Generation Series 6 Aluminum Beam
According to HSG, the new beam is approximately 20% lighter and has about 15% greater torsional resistance than the previous generation. Its lighter weight enables the machine to achieve higher speeds and acceleration, reducing processing time.
3. Reinforced Machine Frame
The new machine frame base features a welded cross-section design that increases overall rigidity and reduces thermal deformation during high-power cutting.
4. Thermal Protection for the Machine Frame
The scrap collection trolley is equipped with high-density fire-resistant panels. The fire-resistant panels inside the machine frame are designed for quick removal, making cleaning and replacement more convenient.

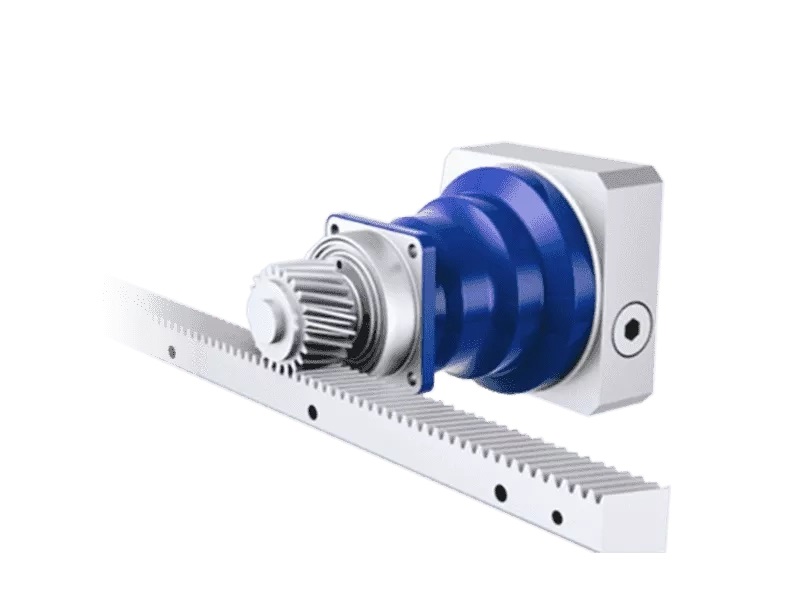

5. High-Precision Transmission System
The machine uses a dedicated gearbox, high-precision racks, and guide rails to ensure stable operation over the long term.
Materials That Can Be Processed
According to the manufacturer, the GH series can cut:
✓ Carbon steel
✓ Stainless steel
✓ Aluminum alloys
✓ Brass
✓ Copper
The power range, from medium to very high, allows users to a configuration based on material thickness and production volume. Actual cutting performance depends on the material type, thickness, cutting gas, and machine configuration.
Who Is the GH Series Suitable For?
– Sheet metal fabrication workshops handling custom orders
– Mechanical engineering and manufacturing companies that need to cut multiple parts in various thicknesses
– Businesses looking to increase production capacity and cutting speed compared with lower-power machines
– Factories requiring large cutting areas to maximize material utilization
Frequently Asked Questions
How Much Laser Power Should You Choose?
The required power depends on the material, the thicknesses commonly cut, and production volume. You should provide these details when making an inquiry to receive advice on a suitable configuration.
Are Detailed Technical Specifications Available?
HSG provides a dedicated product specification sheet for the GH series. You can request further information when making an inquiry.
Contact Us for Consultation
The HSG GH series is a solution worth considering for businesses looking to invest in high-power sheet metal laser cutting machines, optimize their fabrication processes, and enhance production capabilities. Contact Hoang Long Company for advice on a suitable configuration based on your materials, thickness requirements, workpiece dimensions, and actual production volume.
