xFUME VAC FLEX Welding Fume Extractor

 XFUME VAC FLEX BINZEL WELDING FUME EXTRACTOR – ~2,000 M³/H

xFUME VAC FLEX is an ABICOR BINZEL fume extraction unit designed for flexible use in welding, cutting and grinding applications. The unit provides a maximum airflow of approximately 2,000 m³/h, a filtration efficiency of ≥99.9%, and a 1.1 kW motor. Its mobile trolley design with wheels supports convenient movement between different work areas.

1. xFUME VAC FLEX For Welding, Cutting And Grinding

xFUME VAC FLEX is part of the xFUME VAC extraction unit range from ABICOR BINZEL. The model features a mobile design with wheels and a relatively compact footprint for a fume extraction unit of this configuration.

The unit can be used for welding, cutting and grinding applications. The xFUME VAC FLEX configuration connects to an extraction arm to capture fumes and dust generated around the working area.

The mobile design allows the unit to be positioned at different workstations rather than being permanently installed in one location.

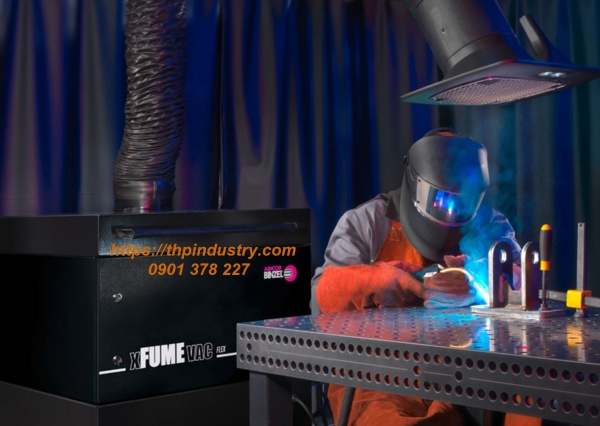

xFUME VAC FLEX Binzel welding fume extractor

2. Key Specifications Of The xFUME VAC FLEX

The main specifications of the xFUME VAC FLEX include:

• Maximum airflow: Approximately 2,000 m³/h
• Connection: Extraction arm
• Noise level: ≤68 dB(A)
• Voltage: 115 V 50/60 Hz or 230 V 50/60 Hz
• Motor power: 1.1 kW
• Filtration efficiency: ≥99.9%
• Filter cleaning: No
• Automatic start/stop: No
• Airflow adjustment: No
• Weight: 139 kg
• Dimensions: 700 × 700 × 1,115 mm

The xFUME VAC FLEX uses a brushless motor and features wheels to support equipment mobility.

2.1. Mobile Design And Filtration Performance

The xFUME VAC FLEX features a cabinet-style structure mounted on wheels, supporting convenient positioning and movement between work areas.

With a maximum airflow of approximately 2,000 m³/h and filtration efficiency of ≥99.9%, the unit is designed to extract and filter fumes generated in applicable applications. The noise level is ≤68 dB(A).

The model operates at 115 V or 230 V, 50/60 Hz, with a 1.1 kW motor.

3. Applications Of The xFUME VAC FLEX Fume Extractor

The xFUME VAC FLEX can be used for:

• Welding
• Cutting
• Grinding

The unit is suitable for work areas where fumes need to be captured during these operations. The extraction arm connection brings the extraction point closer to the working area, while the wheeled design supports flexible equipment positioning.

4. THP Industry Company Limited Supplies The xFUME VAC FLEX

THP Industry Company Limited distributes ABICOR BINZEL products in Vietnam, including the xFUME VAC fume extraction range. The xFUME VAC FLEX is supplied for fume extraction applications in welding, cutting and grinding.

ABICOR BINZEL products imported by THP are supplied with the original Certificate of Origin (C/O). Customers requiring the xFUME VAC FLEX can contact THP to discuss the product and supply availability.

The xFUME VAC FLEX welding fume extractor provides a maximum airflow of approximately 2,000 m³/h, filtration efficiency of ≥99.9%, a 1.1 kW motor and a mobile wheeled design. The unit connects to an extraction arm to support fume capture during welding, cutting and grinding operations. With dimensions of 700 × 700 × 1,115 mm and a weight of 139 kg, the equipment can be positioned in suitable work areas.

THP Industry Company Limited distributes ABICOR BINZEL products in Vietnam and provides the original C/O for products imported by the company.
