ADF600S Auto-Darkening Filter

 ADF600S BINZEL AUTO-DARKENING FILTER – FOR WELDING AND GRINDING

The ADF600S Auto-Darkening Filter by ABICOR BINZEL is an automatic filter system for welding helmets, designed to support both welding and grinding applications. It features adjustable sensitivity and a DIN 9–13 shade range, together with a Grind mode for grinding operations. With a lightweight design weighing approximately 435 g, the system uses solar power and does not require battery replacement.

1. ADF600S Auto-Darkening Filter For Welding Helmets

The ADF600S is an automatic filter system used with ABICOR BINZEL welding helmets, combining welding and grinding applications in one design. In Grind mode, the protection function is switched off, providing a clearer view for grinding operations.

The filter sensitivity can be adjusted using the switch at the rear, within the DIN 9–13 shade range. This allows users to an appropriate protection level for welding operations.

The helmet features impact-resistant material and weighs approximately 435 g, supporting comfortable wear during operation.

ADF600S BINZEL auto-darkening filter on welding helmet

2. Key Specifications Of The ADF600S

The main specifications of the ADF600S system include:

• Viewing area: 44 × 98 mm.
• Filter dimensions: 110 × 90 × 9 mm.
• Shade range: DIN 9–13.
• Sensitivity: Low, high.
• Switching time: 1/16,000 s.
• Delay time: 0.25–0.30 s in fast mode 65–0.80 s in slow mode.
• Grind mode: Yes.
• Operating temperature range: -10°C to +55°C.
• Weight: 435 g.
• Power supply: Solar-powered, with no battery replacement required.

The ADF600S provides adjustable sensitivity and shade levels, while its fast switching time supports use during welding operations.

2.1. Welding And Grinding Modes

The ADF600S supports both welding and grinding applications.

In welding mode, the automatic filter provides eye protection according to the ed DIN shade level. Sensitivity can be adjusted between low and high settings.

When switched to Grind mode, the protection function is turned off to provide a clearer field of view for grinding operations. This feature allows the helmet system to support both welding and grinding tasks.

3. Applications Of The ADF600S

The ADF600S welding helmet is applicable to the following welding processes:

• MMA
• TIG
• MIG/MAG
• Plasma cutting

With its welding and Grind modes, the ADF600S is suitable for operations that combine welding and grinding tasks. Adjustable sensitivity, shade level and delay settings allow users to configure the system according to their operating requirements.

4. Replacement Parts For The ADF600S

The ADF600S system includes replacement components such as:

• Welding helmet ADF600S
• Retaining frame for cover
• Front cover lens SDF600S outside
• Automatic cartridge
• Front cover lens SDF600S inside
• Sweatband for headgear
• Headgear for welded shell

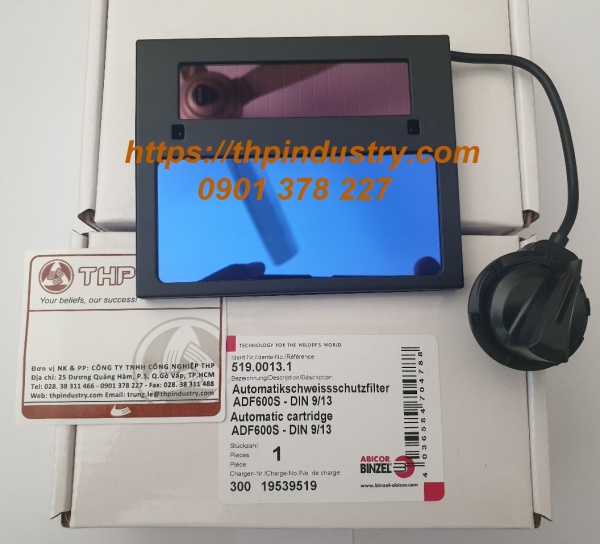

The Automatic Cartridge – Part No. 519.0013.1 is also available, together with other components classified according to their positions within the helmet system.

The availability of replacement components supports the replacement of individual parts when required during product use.

5. THP Industry Company Limited – Supplier of ABICOR BINZEL welding equipment in Vietnam, providing ADF600S solutions for welding and grinding applications.

The ADF600S Auto-Darkening Filter features adjustable DIN 9–13 shade levels, sensitivity settings and a Grind mode for welding and grinding applications. It has a 44 × 98 mm viewing area, a switching time of 1/16,000 s, a weight of 435 g and a solar-powered system that does not require battery replacement. THP Industry Company Limited distributes ABICOR BINZEL products in Vietnam and provides an original C/O for products imported by the company.

Customers looking for the ADF600S can contact THP to discuss the product and compatible replacement components.
