ABIMIG W T Welding Torch

 ABIMIG W T ABICOR BINZEL WELDING TORCH – LIQUID-COOLED, FLEXIBLE

The ABIMIG W T Welding Torch by ABICOR BINZEL is a liquid-cooled MIG/MAG welding torch series with rated capacities ranging from 350 A to 600 A, depending on the model. The torch features a flexible neck with adjustable length and geometry, as well as 360° rotation to support different welding positions and operating requirements. The series includes the ABIMIG W T 340, ABIMIG W T 440 and ABIMIG W T 540 models.

1. ABIMIG W T Liquid-Cooled Welding Torch

The ABIMIG W T is designed for MIG/MAG welding applications with a liquid cooling system. The series includes multiple models and configurations, allowing users to choose according to welding current, wire diameter and operating requirements.

A key feature of the ABIMIG W T is its flexible neck with adjustable length and geometry, combined with 360° rotation. This design allows the torch configuration to be adjusted according to specific welding tasks.

The ergonomic handle supports comfortable operation in different working positions. The series is available with short and long trigger options, with torch lengths of 3 m, 4 m and 5 m.

ABIMIG W T liquid-cooled MIG/MAG welding torch by ABICOR BINZEL

2. Key Specifications Of The ABIMIG W T Welding Torch

The ABIMIG W T series includes three main models:

✤ ABIMIG W T 340

• CO₂ rating: 400 A
• Mixed-gas rating: 350 A
• Pulse rating: 350 A
• Duty cycle: 100%
• Wire diameter: 0.8–1.2 mm

✤ ABIMIG W T 440

• CO₂ rating: 500 A
• Mixed-gas rating: 450 A
• Pulse rating: 350 A
• Duty cycle: 100%
• Wire diameter: 0.8–1.6 mm

✤ ABIMIG W T 540

• CO₂ rating: 600 A
• Mixed-gas rating: 550 A
• Pulse rating: 400 A
• Duty cycle: 100%
• Wire diameter: 1.0–1.6 mm

The above technical specifications are based on EN 60 974-7, with M21 parameters according to DIN EN 439.

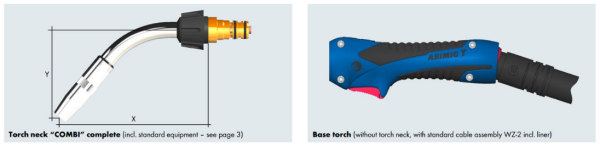

Flexible COMBI Neck Configuration

• The ABIMIG W T uses a COMBI neck system, allowing different torch necks to be combined with the torch body. Available configurations include different geometries, such as 50° and 60°, along with multiple neck lengths.
• Some configurations have X dimensions ranging from 125 mm to 495 mm, depending on the model and neck type. This configuration flexibility allows users to choose a torch setup according to the available working space and welding requirements.
• The neck and gas nozzle are nickel-plated, helping reduce welding spatter adhesion. The torch neck can be changed and rotated 360°, providing greater flexibility during operation.

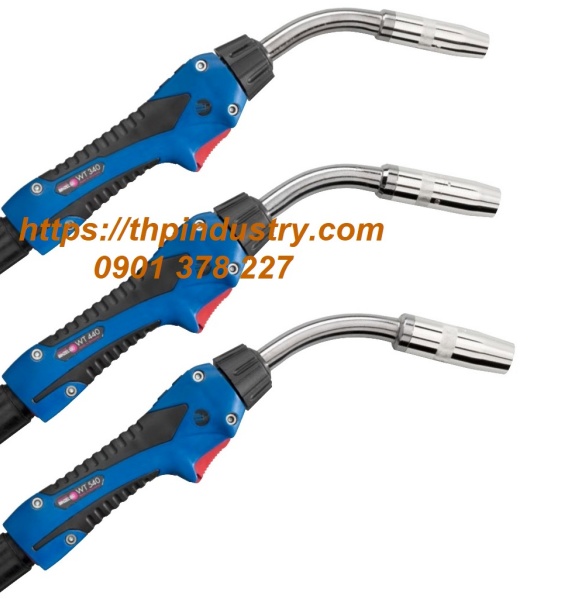

ABIMIG W T 340 440 and 540 welding torch models

3. Choosing The ABIMIG W T Model For Welding Requirements

The three ABIMIG W T models—340, 440 and 540—have different welding current ratings and wire diameter ranges, allowing users to choose according to their welding requirements.

• ABIMIG W T 340: Suitable for 0.8–1.2 mm wire, with a CO₂ rating of 400 A.
• ABIMIG W T 440: Suitable for 0.8–1.6 mm wire, with a CO₂ rating of 500 A.
• ABIMIG W T 540: Suitable for 1.0–1.6 mm wire, with a CO₂ rating of 600 A.

In addition to welding current specifications, users can choose the torch neck configuration according to the required angle, length and geometry. This flexibility is particularly relevant when the welding torch needs to be adapted to different working positions.

4. THP Industry Company Limited Supplies ABIMIG W T Welding Torches

THP Industry Company Limited distributes ABICOR BINZEL products from Germany in Vietnam. ABICOR BINZEL products imported by THP are accompanied by an original Certificate of Origin (C/O).

The ABIMIG W T series is available in the 340, 440 and 540 models, together with various flexible neck configurations. THP supplies the products nationwide in Vietnam, supporting customers looking for ABICOR BINZEL MIG/MAG welding torches according to their specific configuration requirements.

The ABIMIG W T Welding Torch features a liquid cooling system, welding current ratings from 350 A to 600 A depending on the model, and a flexible neck configuration. The ABIMIG W T 340, 440 and 540 support wire diameters of 0.8–1.2 mm, 0.8–1.6 mm and 1.0–1.6 mm, respectively.

Customers looking for an ABICOR BINZEL ABIMIG W T MIG/MAG Welding Torch can contact THP Industry Company Limited to discuss the appropriate model and configuration.
