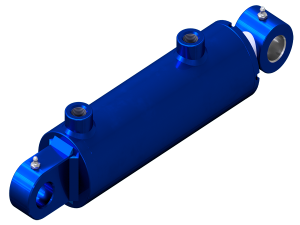

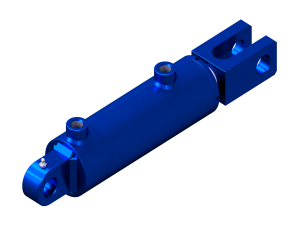

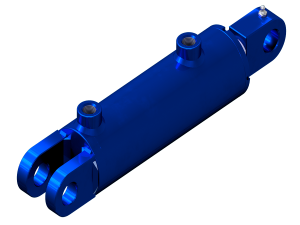

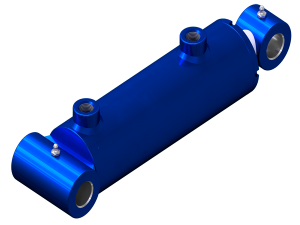

ROUND HYDRAULIC CYLINDER
The round hydraulic cylinder (also known as a tie-rod cylinder) is the most common type in hydraulic systems due to its simple design, ease of manufacturing, and stable operation. It is widely used across various industrial and mechanical applications.
1. Specific Applications of Round Hydraulic Cylinders
Construction & Heavy Equipment:
o Used in excavators, forklifts, bulldozers, and loaders for lifting, lowering, pushing, and tilting.
o Commonly functions as a lifting mechanism for buckets and dump beds.
Agricultural Machinery:
o Found in tractors, harvesters, and tillers to adjust the height and tilt of working attachments.
o Hydraulic lift cylinders allow flexible angle adjustments for improved efficiency.
Industrial Machinery:
o Used in presses, stamping machines, and cutting equipment to generate clamping, punching, or material-handling forces.
o Round cylinders are easy to manufacture in large sizes and can withstand high pressure.
Conveyor & Material Handling Systems:
o Used for pushing products, diverting flows, or sorting items on conveyor belts.
o Their round design ensures smooth and continuous operation.
Shipbuilding & Oil & Gas Industry:
o Applied in dock lifts, valve control, crane booms, and other heavy-duty operations.
o These cylinders are built to endure harsh environments and offer high durability.
Automatic Gates & Security Systems:
o Compact round cylinders are used to operate gates, hatches, and hydraulic locking mechanisms.
2. Advantages of Round Hydraulic Cylinders:
• Easy to manufacture and widely available in the market.
• High pressure resistance.
• Simple maintenance and easy component replacement.
• Suitable for both static and dynamic systems.
