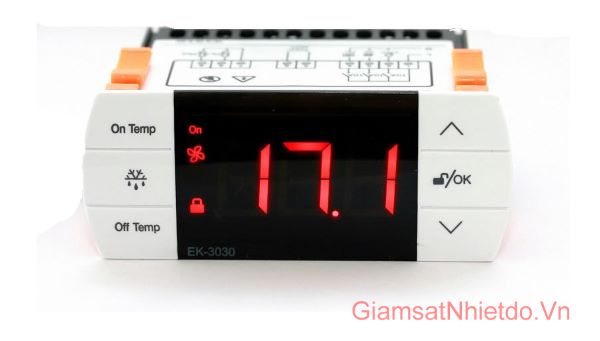

Elitech EK-3030 Temperature Controller

The Elitech EK-3030 temperature controller is employed for precise temperature regulation in cold storage rooms, freezer warehouses, refrigerators, kitchen cabinets, and display cabinets operating at medium to low temperatures. The Elitech EK-3030 temperature controller is capable of: measuring, displaying, and regulating temperature calibrating temperature performing forced defrosting issuing alarms when temperature thresholds are exceeded or sensor faults occur presetting parameters and restoring factory settings with a single key and enabling key lock functionality.

Technical specifications of the Elitech EK-3030 temperature controller

• Measurement range: -40℃ to 99℃

• Control range: -40℃ to 85℃

• Accuracy: -30℃ to 50℃, ±1℃±0.5 others, ±2℃±0.5

• Resolution: 0.1℃ / 1℃

• Mounting dimensions: 71mm × 29mm

• Power supply: 220V ±10% (VAC), 50/60Hz

• Power consumption: <5W

• Output capacity:

  • Cooling: 10A/220VAC or 16A/220VAC

  • Defrosting: 10A/220VAC

  • Fan: 10A/220VAC

• Ambient operating temperature: -5℃ to 60℃

• Ambient humidity: 10% to 90% RH, non-condensing

• Storage temperature: -25℃ to 75℃

• Sensor type: NTC (10KΩ/25℃, B value 3435K)

• Sensor cable length: 2 meters
