C-Chamfered Threaded Rods

 C-CHAMFERED THREADED RODS – CUSTOM LENGTHS FOR MECHANICAL AND CONSTRUCTION APPLICATIONS

C-chamfered threaded rods are threaded fastening components with chamfered edges, suitable for mechanical, construction and industrial applications. Nakaumi Vietnam Co., Ltd. supplies threaded rods in different stainless steel grades, sizes and lengths, including custom lengths from 30 mm to 4,000 mm to meet specific application requirements.

1. C-Chamfered Threaded Rods for Mechanical and Construction Applications

Threaded rods are commonly used as fastening and connection components in mechanical engineering and construction. C-chamfered threaded rods feature chamfered edges and can be manufactured according to specific requirements in terms of size and length.

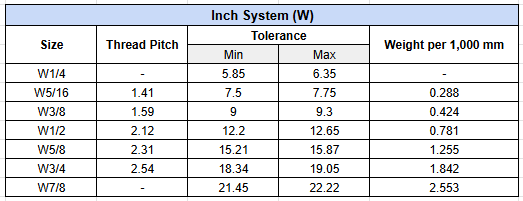

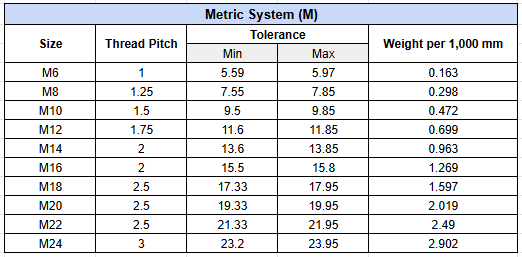

The product range covers metric sizes from M6 to M24 and inch sizes from W1/4 to W7/8. Lengths can range from 30 mm to 4,000 mm, providing options for different fabrication and installation requirements.

2. Stainless Steel Materials and Technical Specifications

C-chamfered threaded rods are available in the following stainless steel grades:

• SUS 304
• SUS 310
• SUS 316
• SUS 403

Strength grades of 4.8 and 6.8 are available upon request. The rods are supplied without additional surface treatment.

3. Custom Lengths for Different Requirements

C-chamfered threaded rods can be manufactured in lengths from 30 mm to 4,000 mm according to customer requirements. Custom-length production helps reduce additional cutting work at construction sites and allows the threaded rods to match specific fabrication requirements.

Custom production also helps avoid unnecessary connecting components where a required rod length can be supplied directly. This can simplify handling and installation for suitable applications.

4. Applications of C-Chamfered Threaded Rods

C-chamfered threaded rods are suitable for applications involving mechanical fastening and threaded connections in:

• Mechanical engineering
• Construction
• Industrial production
• Fabrication and assembly
• Projects requiring specified threaded rod dimensions

The range of metric and inch sizes provides options for different fastening requirements. Material grades, dimensions and lengths can be ed according to the technical requirements of each application.

5. Packaging and Supply

C-chamfered threaded rods are carefully packaged in 20 kg packs, with the rods securely bundled for transportation to construction sites and other application locations.

The combination of different material grades, sizes and custom-length options allows the product to serve projects with varied technical requirements. Nakaumi Vietnam also provides threaded rods manufactured according to specific requirements.

6. Nakaumi Vietnam – Threaded Rod Manufacturer and Supplier

Nakaumi Vietnam Co., Ltd. manufactures and supplies threaded rods for industrial production, mechanical engineering and construction applications. Its product range includes threaded rods in different specifications and custom configurations.

The company operates a factory in My Xuan B1 Industrial Park with a total area of 16,378.2 m². Its production equipment is imported from Japan and Taiwan, while its production process is managed with quality control from raw materials through finished products.

Nakaumi Vietnam also applies management software to control individual production stages and supports customer requirements for threaded rod products.

Nakaumi Vietnam Co., Ltd. – C-Chamfered Threaded Rods for Mechanical and Construction Applications

Contact Nakaumi Vietnam Co., Ltd. for further consultation on C-chamfered threaded rods, including material grades, sizes and required lengths.
