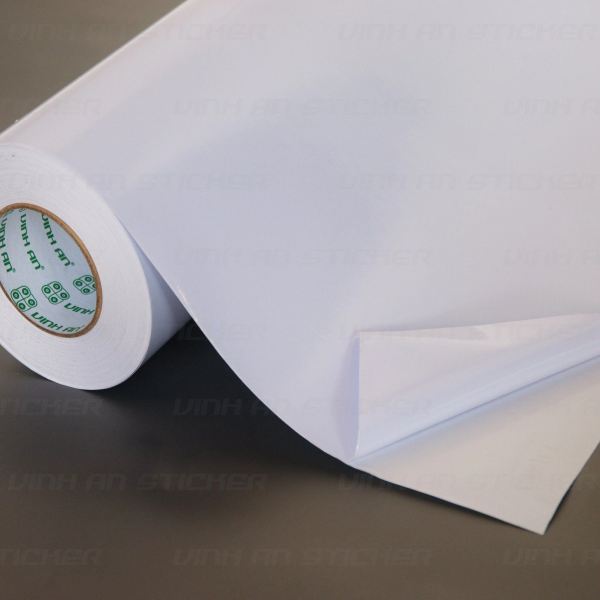

5-Year Outdoor Inkjet Vinyl

 5-YEAR OUTDOOR INKJET VINYL – WHITE AIR-RELEASE LINER

5-Year Outdoor Inkjet Vinyl is a white printable vinyl material for displays, illuminated and non-illuminated signage, and windows. It features a 0.10 mm PVC face film with 4-way stretchability, good ink absorption, and compatibility with Eco-Solvent and UV inks. A removable solvent acrylic adhesive and PE-coated liner with air-release channels support applications with a 5-year outdoor application period.

1. 5-Year Outdoor Inkjet Vinyl for Outdoor Visual Applications

5-Year Outdoor Inkjet Vinyl is a white vinyl material designed for visual applications with an outdoor application period of 5 years. The product is identified by code MC501QDTK5Y and is available in multiple roll widths.

The face film is made from PVC with a thickness of 0.10 mm. Its characteristics include:

• 4-way stretchability
• Good ink absorption
• Compatibility with Eco-Solvent and UV inks

The white vinyl is suitable for printed displays, illuminated signage, non-illuminated signage, and windows. Its printable face film is compatible with the specified ink technologies for visual graphics production.

Available roll widths are 36.0", 42.1", 50.0", 53.1" and 59.8", with a roll length of 54.7 Y.

5-Year Outdoor Inkjet Vinyl for signage, displays and windows

2. Technical Structure and Specifications

The material combines a PVC face film, removable solvent acrylic adhesive, and a 2-side PE-coated liner with one release-coated side and air-release channels.

• Product code: MC501QDTK5Y
• Color: White
• Outdoor application period: 5 years
• PVC face film thickness: 0.10 mm
• Stretchability: 4-way
• Ink absorption: Good
• Ink compatibility: Eco-Solvent and UV inks
• Adhesive: Removable solvent acrylic adhesive
• Adhesive thickness: 33 μm
• Adhesive performance: Strong and stable adhesion with clean, residue-free removal
• Liner: 2-side PE-coated liner
• Liner structure: One release-coated side with air-release channels
• Liner thickness: 140 μm
• Compliance: REACH compliance documentation available

The adhesive has a thickness of 33 μm and provides strong and stable adhesion with clean, residue-free removal. The liner has a thickness of 140 μm and uses a PE-coated structure with one release-coated side and air-release channels.

Available roll dimensions include:

• 36.0" × 54.7 Y
• 42.1" × 54.7 Y
• 50.0" × 54.7 Y
• 53.1" × 54.7 Y
• 59.8" × 54.7 Y

Metric roll options include:

• 0.914 m × 50 m
• 1.07 m × 50 m
• 1.27 m × 50 m
• 1.35 m × 50 m
• 1.52 m × 50 m

The product also has REACH compliance documentation available.

3. Applications for Displays, Signage and Windows

5-Year Outdoor Inkjet Vinyl is suitable for:

• Displays
• Illuminated signage
• Non-illuminated signage
• Windows

The material is compatible with Eco-Solvent and UV inks, supporting printing applications that use these ink technologies. Its 4-way stretchable PVC face film provides flexibility for application on visual surfaces.

The white vinyl format provides a printable substrate for visual graphics, while the available roll widths accommodate different display and printing formats. Width options range from 36.0" to 59.8", corresponding to metric widths from 0.914 m to 1.52 m.

With a 0.10 mm PVC face film, 33 μm removable solvent acrylic adhesive, and 140 μm PE-coated air-release liner, the product provides a defined material structure for displays, signage, and window applications with a 5-year outdoor application period.

Long An Sticker Manufacture Company Limited – Manufacturer of decal paper and vinyl sticker paper for commercial printing applications.

Contact Long An Sticker Manufacture Company Limited to discuss 5-Year Outdoor Inkjet Vinyl specifications, available roll sizes, and application requirements.
