1-Year Outdoor Inkjet Vinyl

ف-YEAR OUTDOOR INKJET VINYL – WHITE/CLEAR BUBBLE-FREE LINER

1-Year Outdoor Inkjet Vinyl is available in white and clear versions for displays, illuminated and non-illuminated signage, and window applications. It features a 0.09 mm PVC face film with 4-way stretchability, good ink absorption, and compatibility with Eco-Solvent and UV inks. A removable solvent acrylic adhesive and bubble-free liner complete the material structure for outdoor visual applications.

1. 1-Year Outdoor Inkjet Vinyl for Outdoor Visual Applications

1-Year Outdoor Inkjet Vinyl is developed for visual materials with an outdoor application period of 1 year. The product is available in white and clear versions to support different display, signage, and window graphic requirements.

The PVC face film has a thickness of 0.09 mm and provides:

• 4-way stretchability
• Good ink absorption
• Compatibility with Eco-Solvent and UV inks

Two product codes are available:

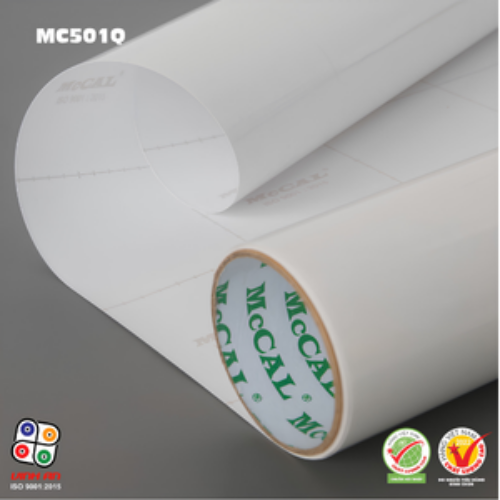

• MC501QDTK – White
• MCG65QDTK – Clear

The material is suitable for printed displays, illuminated and non-illuminated signage, and window applications where a printable vinyl surface is required.

1-Year Outdoor Inkjet Vinyl for signage, displays and windows

2. Technical Structure and Specifications

The material consists of a PVC face film, removable solvent acrylic adhesive, and a double-sided PE-coated liner with bubble-free channels.

Product codes: MC501QDTK / MCG65QDTK

• Color: White / Clear
• Outdoor application period:ف year
• PVC face film thickness:ـ.09 mm
• Stretchability:ل-way
• Ink absorption: Good
• Ink compatibility: Eco-Solvent and UV inks
• Adhesive: Removable solvent acrylic adhesive
• Adhesive thickness:㺡 μm
• Adhesive performance: Strong and stable adhesion with clean, residue-free removal
• Liner: Double-sided PE-coated liner
• Liner structure: One release-coated side with bubble-free channels
• Liner thickness:𧆌 μm
• Compliance: REACH compliance documentation available

Available roll sizes include 36.0", 42.1", 50.0", 53.1" and 59.8" × 54.7 Y.

Metric roll dimensions include:

• 0.914 m × 50 m
• 1.07 m × 50 m
• 1.27 m × 50 m
• 1.35 m × 50 m
• 1.52 m × 50 m

The 33 μm removable solvent acrylic adhesive provides strong and stable adhesion while allowing clean, residue-free removal. The 140 μm double-sided PE-coated liner incorporates one release-coated side with bubble-free channels to support application of the vinyl material.

3. Applications for Displays, Signage and Windows

1-Year Outdoor Inkjet Vinyl is suitable for:

• Displays
• Illuminated signage
• Non-illuminated signage
• Windows

Its compatibility with Eco-Solvent and UV inks supports printing applications using these ink technologies. The 4-way stretchable PVC face film provides flexibility for application across different visual surfaces.

The availability of white and clear versions provides options for different visual requirements. Multiple roll widths, from 36.0" to 59.8", are available for different printing and display formats.

With its PVC face film, removable solvent acrylic adhesive, and bubble-free liner, the material is configured for displays, signage, and window applications with a 1-year outdoor application period.

Long An Sticker Manufacture Company Limited – Manufacturer of decal paper and vinyl sticker paper for commercial printing applications.

Contact Long An Sticker Manufacture Company Limited to discuss 1-Year Outdoor Inkjet Vinyl specifications, available sizes, and application requirements.
