PBT Plastic Resin Pellets

 PBT PLASTIC RESIN PELLETS – HEAT RESISTANT AND ELECTRICALLY INSULATING

PBT Plastic Resin Pellets, also known as Polybutylene Terephthalate Resin, are semi-crystalline engineering thermoplastics widely used for components requiring electrical insulation, heat resistance and dimensional stability. With fast crystallization, low moisture absorption and strong chemical resistance, PBT resin is suitable for electrical and electronic, automotive, mechanical and household applications.

1. PBT Plastic Resin Pellets For Engineering Components

Polybutylene Terephthalate (PBT) is a semi-crystalline engineering thermoplastic belonging to the polyester family. Its fast crystallization rate supports efficient injection molding cycles, while its low moisture absorption helps maintain stable mechanical properties in humid environments.

PBT also provides strong resistance to solvents and other chemicals. These characteristics make the material suitable for precision components where electrical insulation, dimensional stability and resistance to demanding operating conditions are important.

PBT plastic resin pellets for engineering components

2. Key Properties Of PBT Resin

PBT Plastic Resin Pellets offer several technical properties for engineering applications:

• Electrical insulation: PBT provides high volume resistivity and high dielectric strength, making it suitable for electrical components.
• Heat resistance and flame retardancy: PBT maintains stiffness and strength at continuous operating temperatures of approximately 120–140°C. Flame-retardant PBT grades meeting UL94-V0 are available.
• Chemical resistance: PBT provides strong resistance to chemicals, oils, grease, gasoline and strong cleaning agents.
• Dimensional stability: Low moisture absorption helps minimize dimensional changes in humid environments and supports dimensional accuracy in technical components.
• Processing and compounding flexibility: PBT is suitable for glass fiber reinforcement and impact-modifying additives to adjust material performance according to application requirements.

These properties make PBT a practical material solution for manufacturers of electrical, automotive and mechanical components requiring stable performance during service.

3. Applications Of PBT Plastic Resin Pellets

PBT resin is used across several industrial and consumer product applications:

✤ Electrical and Electronic Components:

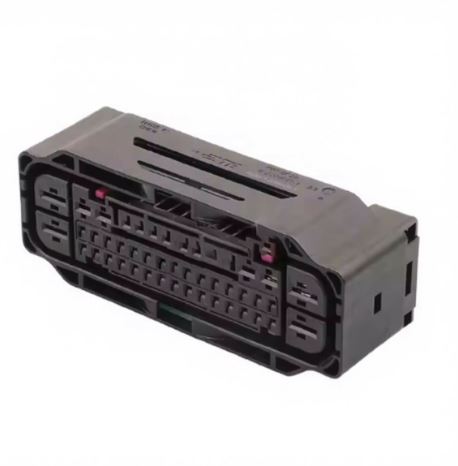

• Applications include connectors, switches, transformer coils, relay housings, electrical sockets and heat dissipation components.

✤ Automotive Components:

• PBT can be used for under-the-hood components such as ignition system components, distributor caps, door handles and sensor housings.

✤ Machinery Components:

• Applications include gears, cams, pump frames and components used in precision measuring equipment.

✤ Household Appliances:

• PBT resin is used for iron components, hair dryer components, blender housings and other equipment requiring heat resistance.

The material is particularly suitable for components that require electrical insulation, chemical resistance, dimensional stability and reliable performance under elevated temperatures.

4. PBT Compounds For Specific Performance Requirements

PBT can be compounded with reinforcement materials and additives to meet different component requirements.

✤ Titan Polymer Compounds provides PBT compound solutions including:

• Glass fiber reinforced PBT with glass fiber content ranging from 10% to 50%.
• PBT/ASA compounds for specific material requirements.
• PBT/PET compounds for application-specific performance requirements.

These formulations provide manufacturers with additional material options for adjusting the performance and cost characteristics of finished components according to design and production requirements.

5. PBT Resin Supply And Technical Support

Titan Polymer Compounds Viet Nam Company Limited provides PBT Plastic Resin Pellets and PBT compound solutions for industrial manufacturing applications. Technical support includes consultation on suitable PBT grades according to product design and mold requirements.

For manufacturers working with electrical, automotive, mechanical or household components, PBT resin offers a combination of electrical insulation, heat resistance, chemical resistance and dimensional stability. Compounded formulations can further address specific material requirements through glass fiber reinforcement and other material combinations.

6. Titan Polymer Compounds Viet Nam Company Limited – PBT Plastic Resin Pellets For Engineering Applications

PBT Plastic Resin Pellets provide a combination of electrical insulation, heat resistance, chemical resistance and dimensional stability for engineering components. The material is suitable for electrical and electronic, automotive, mechanical and household applications, while compounded PBT formulations provide additional options for specific performance requirements.

Contact Titan Polymer Compounds Viet Nam Company Limited for technical consultation on PBT resin grades and compounded material solutions suited to your product design and processing requirements.
