Precision Deep Drawing Dies

 DEEP DRAWING DIES FOR PRECISION SHEET METAL FORMING

Deep Drawing Dies are specialized tooling for forming sheet metal into deep and complex shapes while minimizing tearing and material deformation during the forming process. The dies feature a robust construction and high precision, making them suitable for manufacturing electronic equipment housings, automotive components, household products and other technical parts.

1. Deep Drawing Dies For Sheet Metal Forming

Deep Drawing Dies are used to form sheet metal into products with deep and complex shapes. The forming process allows the material to be shaped according to the required profile while minimizing tearing and deformation.

✦ Typical formed products include:

• Component housings.
• Cups, trays and covers.
• Other deep and complex-shaped metal products.

 Deep drawing supports the controlled forming of sheet metal into the required shapes for various manufacturing applications.

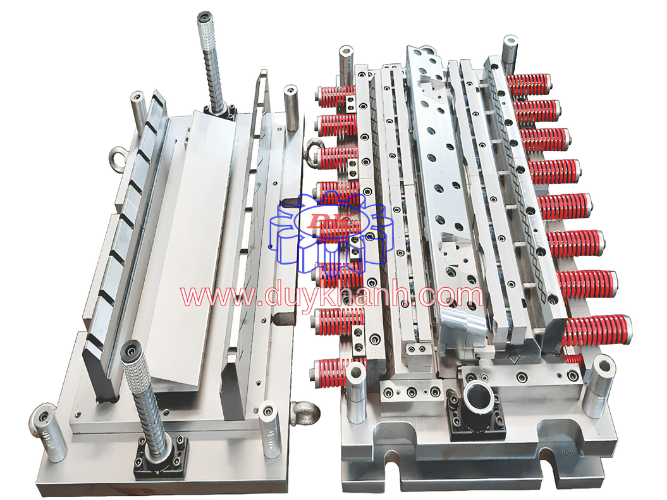

Deep Drawing Die for sheet metal forming

2. Robust Construction For Stable Stamping

The dies are manufactured from high-quality alloy steel and designed to meet requirements for precision, hardness and durability during operation.

✦ Key characteristics include:

• Robust die construction.
• High precision.
• High-quality alloy steel.
• Reinforced support spring system for even force distribution during stamping.
• Reduced vibration during the stamping process.
• Practical design for installation, maintenance and component replacement.

The die structure is designed to support stable operation while facilitating maintenance and replacement when required.

3. Applications In Electronics, Automotive And Household Products

Deep Drawing Dies are used for manufacturing sheet metal components across various production sectors.

✦ Key application areas include:

• Electronic equipment housings.
• Automotive components.
• Household products.
• Other technical applications.

The dies are suitable for manufacturing requirements involving deep and complex sheet metal shapes, where precision and stable forming performance are important.

4. Duy Khanh Engineering – Custom Deep Drawing Die Solutions

Duy Khanh Engineering Co., Ltd. provides Deep Drawing Dies for sheet metalworking applications, with a focus on robust construction, high precision and stable operation. The dies are designed for convenient installation, maintenance and component replacement.

Deep Drawing Dies support the forming of sheet metal into deep and complex products while addressing requirements for precision and stability during the stamping process.

Contact Duy Khanh Engineering Co., Ltd. to discuss a suitable Deep Drawing Die solution for your sheet metal forming requirements.
