Custom-Shaped PE Foam

 CUSTOM-SHAPED PE FOAM FOR SECURE PRODUCT PROTECTION

Custom-shaped PE foam provides cushioning and product positioning for goods that require protection during handling, storage, and transportation. Designed to follow individual product contours, custom PE foam trays, corner protectors, and foam blocks are suitable for electronic components, cameras, medical equipment, machinery, furniture, and other products requiring structured protective packaging.

For customized packaging requirements, MYNH Company develops PE foam solutions based on physical product samples or technical drawings, with options including custom trays, protective profiles, and foam blocks.

1. Custom-Shaped PE Foam for Protective Packaging

• Custom-shaped PE foam is manufactured by thermally laminating multiple layers of virgin PE foam sheets to achieve the required thickness, ranging from 20 mm to more than 100 mm. The foam blank is then processed through CNC cutting or mechanical die cutting to create trays, foam boxes, corner protectors, and other three-dimensional structures.
• The customized structure follows the product`s contours to help keep goods securely positioned inside the packaging. It helps reduce movement and vibration during transportation while providing cushioning against impact and contact between the product and packaging.
• PE foam has a flexible structure and smooth surface. Compared with EPS foam, which can break into small particles during handling, PE foam is less prone to shedding and is suitable for packaging applications where a cleaner surface is required.
• Its closed-cell structure provides resistance to moisture and helps protect packaged components from damage associated with humid environments. For electronic products, antistatic additives can be incorporated into the material to provide ESD protection. Pink antistatic PE foam can be used for packaging electronic boards, integrated circuits, and other sensitive electronic components.

Custom-shaped PE foam for protective packaging

2. Custom PE Foam Trays, Corner Protectors and Foam Blocks

MYNH provides different custom PE foam formats according to product dimensions and packaging requirements.

✤ 3D Custom PE Foam Trays

• Custom PE foam trays are die-cut with cavities that follow the dimensions and contours of individual products. They can be used for medical measuring devices, cameras, microphones, earphones, premium gift boxes, and other products requiring secure positioning inside their packaging.
• A product-specific cavity helps minimize unwanted movement inside the packaging and creates a cushioning layer between the product and the outer carton or box.

✤ PE Foam Corner Protectors and V-Shaped Profiles

• PE foam corner protectors and V-shaped profiles are used to protect vulnerable corners and edges during handling and transportation.
• Applications include export furniture, TV screens, tempered glass panels, doors, and other products that may be exposed to scratches or impact around their edges and corners.
• These components can be incorporated into the outer packaging to provide additional cushioning at areas that require localized protection.

✤ Thermally Laminated PE Foam Blocks

• Multi-layer PE foam blanks can be thermally laminated to the required thickness and then grooved or milled according to the internal dimensions of a carton.
• The resulting custom foam blocks can be used as cushioning bases or support components for heavy machinery and mechanical equipment.

3. Custom PE Foam Fabrication and Sample Development

MYNH supports custom PE foam fabrication for packaging structures developed from physical product samples or technical drawings. This process allows the required tray or protective component to be designed around the actual dimensions and shape of the product.

✤ Custom Sample Development

• When a customer does not have a 3D drawing, MYNH can work from a physical product sample. The technical team measures the product, develops the corresponding tray structure, and produces a trial sample for fit evaluation before mass production.
• The sample allows the packaging structure to be evaluated against the actual product dimensions before a larger production batch begins.

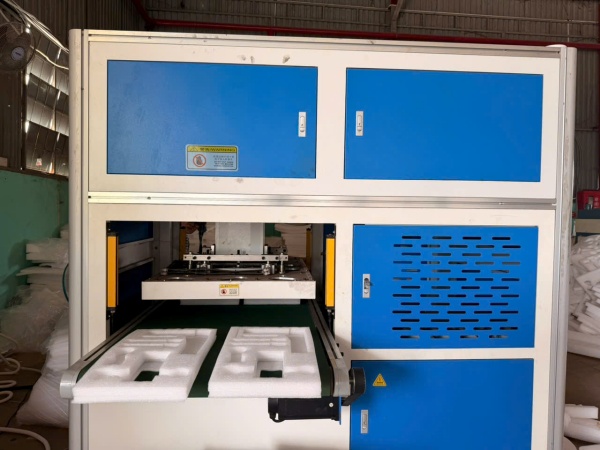

✤ Automated CNC Die Cutting

• MYNH operates an automated CNC die-cutting system for custom PE foam components. The process provides smooth and precise cuts for trays, cavities, profiles, and other shaped foam parts.
• CNC die cutting also supports dimensional consistency across production batches when the same product-specific design is required.

✤ In-House PE Foam Production

• MYNH directly extrudes PE foam from virgin LDPE resin and performs mold-based fabrication in-house. This integrated process covers both PE foam production and custom shaping within MYNH`s operations.
• Sample development takes approximately 1–2 working days. After sample approval, mass production generally takes approximately 3–5 days, depending on order quantity.

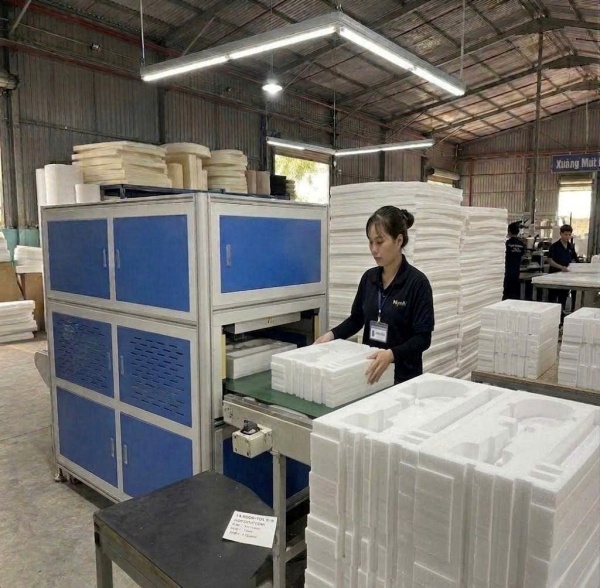

MYNH custom PE foam fabrication and CNC die cutting

4. PE Foam Applications for Industrial Packaging

Custom-shaped PE foam is suitable for products requiring cushioning, positioning, and surface protection throughout handling, storage, and transportation.

✤ Typical applications include:

• Electronic components and electronic boards
• Cameras, microphones, and earphones
• Medical measuring equipment
• Mechanical machinery and equipment
• Export furniture
• TV screens and tempered glass panels
• Doors and products requiring edge protection
• Premium gift boxes

MYNH also accepts different order volumes, from small trial orders to larger supply requirements for factories and manufacturing groups.

5. Frequently Asked Questions About Custom-Shaped PE Foam

✤ Can MYNH design a custom PE foam tray without a 3D drawing?

Yes. Customers can provide the physical product to MYNH. The technical team can measure its dimensions, develop the 3D tray structure, and produce a trial sample for fit evaluation before mass production.

✤ How long does sample development and mass production take?

Sample development takes approximately 1–2 working days. After sample approval, mass production generally takes approximately 3–5 days, depending on order quantity.

✤ Does MYNH accept small and medium-volume orders?

Yes. MYNH accepts different order volumes, from small trial orders to larger supply requirements for factories and manufacturing groups.

✤ What types of custom PE foam products does MYNH provide?

MYNH provides custom PE foam trays, corner protectors, V-shaped profiles, and thermally laminated foam blocks based on product dimensions and packaging requirements.

6. MYNH Company – Custom PE Foam Fabrication for Protective Packaging

MYNH Company provides custom-shaped PE foam solutions for protective packaging, including 3D foam trays, corner protectors, V-shaped profiles, and thermally laminated foam blocks. With in-house PE foam production, custom fabrication, sample development, and CNC die cutting, MYNH supports packaging requirements based on physical product samples or technical drawings.

MYNH operates an office in Thu Dau Mot City and a production facility in Ben Cat, Binh Duong. The company also supports delivery to industrial areas in Binh Duong, Ho Chi Minh City, and Dong Nai.

For businesses requiring custom PE foam fabrication, contact MYNH Company for technical consultation, sample development, and a quotation based on product dimensions and packaging requirements.
