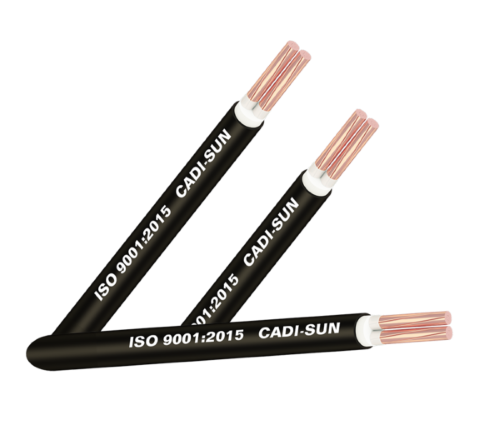

CXV Power Cable 2×50mm²

Applicable standards:

TCVN 5935-1 / IEC 60502-1

Overview:

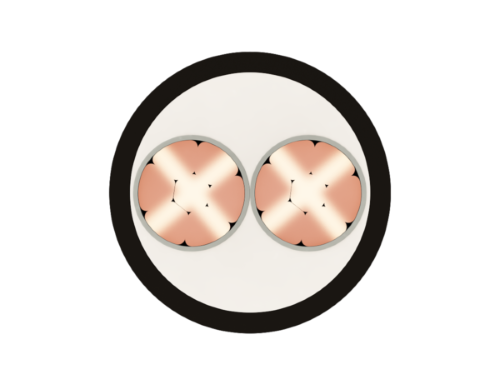

• Specification: Cu/XLPE/PVC

• Conductor: 99.99% copper.

• Number of cores: 2

• Construction: Multiple stranded round conductors / compacted round conductors, Class 2.

• Nominal cross-sectional area: From 0.75 mm² to 800 mm²

• Rated voltage: 0.6/1 kV

• Maximum permissible continuous operating temperature: 90°C

• Maximum permissible temperature under short-circuit conditions (not exceeding 5 seconds): 250°C

• Shape: Round

• Packaging specification: Supplied in reels or coils according to customer requirements.

Application:

Power cable with 1 to 5 cores, copper conductors, XLPE insulation, PVC sheath, used for power transmission and distribution in industrial applications, frequency 50Hz, fixed installation.
