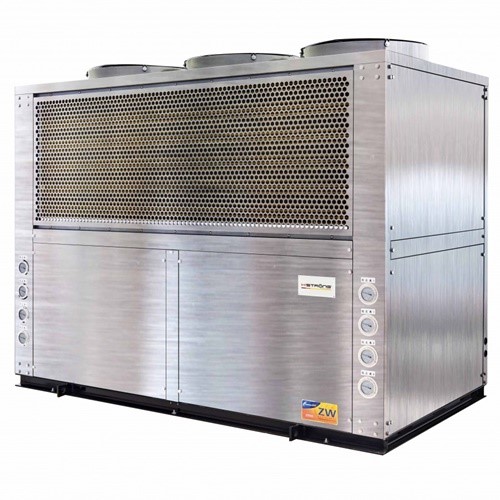

AIR SOURCE HEAT PUMP 60°C

HIGH-PERFORMANCE INDUSTRIAL HOT WATER SOLUTION

In the era of green technology and energy conservation, Air-to-Water Heat Pumps have become the leading trend in providing hot water for large-scale facilities such as hotels, resorts, factories, hospitals, schools, and industrial complexes.

With a heating capacity of 158 kW and the ability to heat water up to 60°C, this product is the perfect solution for facilities requiring a stable, durable, and energy-efficient hot water system.

OUTSTANDING TECHNICAL SPECIFICATIONS

• Heating capacity: 158 kW – meets continuous large-scale hot water demand


• Power consumption: 36.2 kW – high COP performance, optimal energy efficiency


• Circulating water flow rate: 32 m³/h – stable water pressure and circulation


• Compressor: Copeland scroll type – renowned American brand, 8 compressors integrated


• Refrigerant: R417A – efficient and environmentally friendly


• Heat exchanger: Single high-efficiency condenser coil


• Casing: SUS 304 stainless steel – corrosion-resistant, long-lasting durability


• Maximum water temperature: 60°C


• Condenser working pressure: 0.8 MPa


• Maximum current: 98 A


• Operating range: -10°C ~ 45°C – adaptable to various climates


• Voltage: 380V / 3 phase / 50Hz


• Noise level: ≤ 68 dB – quiet operation, suitable for all environments


• Dimensions: 2400 x 1900 x 2150 mm


• Net weight: 1500 kg

REASONS TO CHOOSE M&H AIR SOURCE HEAT PUMP

✅ Cost-effective operation: Advanced heat pump technology utilizes ambient air heat, saving up to 75% of electricity compared to traditional electric heating.

✅ Reliable performance under diverse weather conditions from -10°C to 45°C.

✅ Environmentally responsible: Uses R417A refrigerant – safe and eco-friendly.

✅ Easy maintenance – long lifespan – industrial-grade durability.

✅ Ideal for projects requiring continuous and stable hot water systems.

IDEAL APPLICATIONS

• Hotels, resorts, hospitals, schools, high-rise residences


• Food and pharmaceutical processing plants, industrial laundries


• Sports centers, spas, shopping complexes, and resorts

M&H ENERGY VALUE-ADDED SERVICES

• System consulting – site survey – customized design


• Nationwide installation, maintenance, and technology transfer


• 24/7 technical support – quality assurance – official long-term warranty

📞 Contact us today for free consultation and to receive the best quotation for your project!

M&H ENERGY – LEADING THE WAY IN EFFICIENT, SUSTAINABLE, AND RELIABLE ENERGY SOLUTIONS
