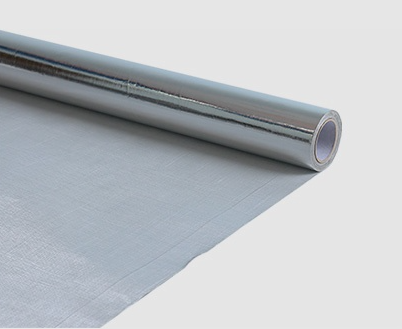

ECONOMIC ALUMINUM FOIL FIBERGLASS CLOTH
Economic aluminum foil fiberglass cloth is suitable for a wide variety of applications, it can be used as insulation and vapor barrier layer for numerous insulation materials, with good aging resistance and corrosion resistance.Our facings are designed with proprietary flame retardant chemistry to meet demanding fire codes and standards.
Construction
|
Facing Composition
|
Description
|
Value (Metric)
|
|
Foil
|
Aluminum
|
7 micron
|
|
Adhesive
|
Adhesive
|
10 micron
|
|
Fiberglass
|
10x8 mesh/cm
|
80 gsm
|
Typical physical property
|
Physical Property
|
Value (Metric)
|
Test Method
|
|
Basic Weight
|
100 gsm
|
Scale
|
|
Permeance (WVTR)
|
5.75 ng/ N.s
|
ASTM E96, Procedure A
|
|
Tensile Strength - MD
|
400 N/25 mm
|
ASTM D828
|
|
Tensile Strength - XD
|
200 N/25 mm
|
ASTM D828
|
|
Burst Strength
|
80 N/ cm2
|
ASTM D774
|
|
Temperature Resistance
|
Remains Flexible No Delamination
|
ASTM C1263 -30 °C/+100 °C
|
|
Emissivity
|
0.03
|
ASTM E408
|
Available roll width: 1.0m, 1.2m
Remarks
1. Above data are typical results and not the guaranteed performance.
2. Tolerance: Weight and Thickness: ±10% Width: ±2mm Length: ±0.5%.
3. The products should be stored at room temperature away from wet and heat source.
4. Please do trial-application and make sure the product can serve the specific application before actually put it to use.
